  • Application range
  • Technical Parameters
  • Bag Sealing Type
  • Optional items
  • Equipment outline drawing
Equipment technical parameters:

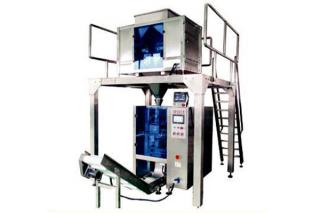

1.This set of automatic weighing and packing system
(1).Vibration feeding type Z material lifting equipment
(2).Computer combination weighing equipment
(3).Automatic vertical packaging equipment
(4).Working platform
(5).Product conveying equipment

2.Feature:

The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.

3.Applicable scope:

The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.

Model

KL-C420

KL-C520

Making bag size

(L)60-300mm, (W)60-200mm

(L)80-350mm, (W)80-250mm

Packing Speed

25-75Bags/Min

25-65Bags/Min

ower Supply

220V, 50-60Hz, 3.0 Kw

220V, 50-60Hz, 3.6Kw

Compressed air consumption

6-8 kg/m2 ~0.3 m3/min

6-8 kg/m2~ 0.3 m3/min

Weight

500 Kg

700 kg

Dimension

1450×1000×1400 (mm)

1450×1100×1500 (mm)

1): Nitrogen filling function

2): Venting device

3): Gusset device
4): Hook the hole cutter seat
5): Date Printer
