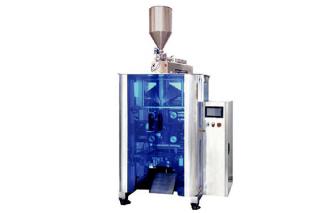

Full automatic liquid / paste products quantitative bag packaging equipment
Full automatic liquid / paste products quantitative bag packaging equipment
Full automatic liquid / paste products quantitative bag packaging equipment
  • Application range
  • Technical Parameters
  • Bag Sealing Type
  • Optional items
  • Equipment outline drawing
Equipment profile:

It is widely used in packing filling of sweetened bean paste, filling of lotus meat, fruit jam, Chinese watermelon jam, cheese jam, sauce, salad, lotion, liquid, semi liquid.
Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the productivity, decrease the cost, and avoid making the twice packing.

Model

KL-Y600I

KL-Y600II

Making bag size

W:100-250mm L:150-480mm

W:100-290mm L:150-600mm

Film width

220-560mm

220-620mm

Packing material

Composite film NY/PE ect

Packing speed

4-10 bags/min ( Depend on packing weight ,Material viscosity )

Packing volume

Max.5000cc

Max.10000cc

Sealing type

Back seal

Power supply

AC 380V 50Hz

Power

4.5KW

Air pressure

0.6-0.8 Mpa .0.006m3/min

Dimension

L1350mm X W980mm X H 1980mm

L1350mm X W1080mm X H2150mm

Weight

980Kg

1080kg

1): Nitrogen filling function
2): Venting device
3): Gusset device
4): Hook the hole cutter seat
5): Date Printer
