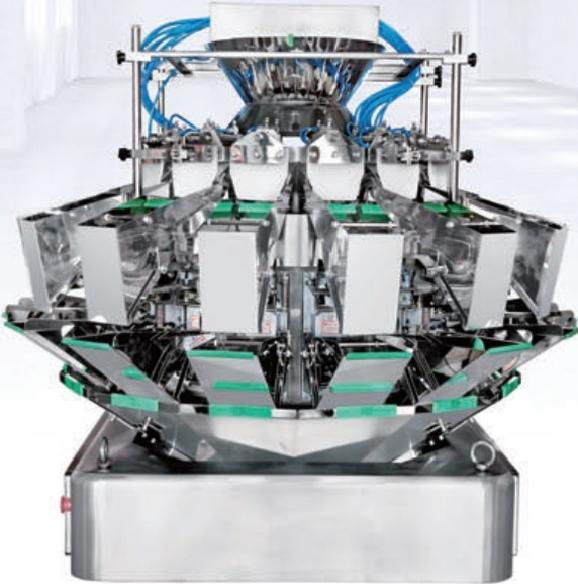

Kunbupack Anti-Crush Combination Scale - Precise Weighing for Fragile Materials

Visa Mastercard American Express PayPal Diners Club Discover

This Anti-Crush Combination Scale is suitable for quantitative weighing of fragile materials such as fresh fruits, ice cubes, thin biscuits, peanuts, etc.

Functional Features

  • Adopt high-precision and high-standard custom sensors.
  • Intelligent multi-sampling stabilization mode for more accurate weighing.
  • Intelligent fault alarm prompt for easier maintenance.
  • High-speed asynchronous discharging function to effectively prevent material blockage.
  • New high-integration modular design with CAN bus technology.
  • Industrial standard communication protocol, integrating the interfaces of the combined weigher and packaging machine into one.

Mechanical Characteristics

  • Vertical material retaining linear vibratory pan to completely separate materials.
  • Chute-type feeding hopper for sliding material feeding.
  • Inclined weighing hopper to shorten the falling height in advance.
  • Gentle-angle chute to allow materials to slide smoothly to the next process.
  • Reduce the material falling height in all aspects to protect the integrity of materials.

Keywords

fragile material, fruit weighing machine ,egg weighing,combination scale

ModelKB-10KB-14
Weighing Range10~1000g10~1000g
Weighing AccuracyX(0.5)X(0.5)
Maximum Weighing Speed40P/M60P/M
Hopper Capacity3L3L
Operation Interface10.1-inch touch screen10.1-inch touch screen
Optional DevicesCheckered weighing hopper/collecting hopper/data printing device/overweight sorting deviceCheckered weighing hopper/collecting hopper/data printing device/overweight sorting device
Drive MethodStepper motorStepper motor
Power Requirement220V/1400W/50/60Hz/6A220V/2200W/50/60Hz/10A
Packaging Dimension1620(L)×1080(W)×1050(H)1700(L)×1200(W)×1150(H)
Packaging Weight400kg490kg
