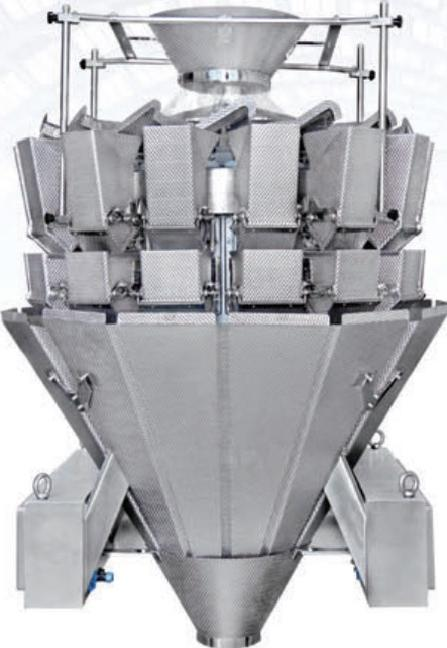

Kunbupack Noodle Combination Scale - High-Speed Weighing for Wet Soft Strip Materials

Visa Mastercard American Express PayPal Diners Club Discover

This Noodle Combination Scale is suitable for soft and elongated materials such as tender noodles, vermicelli, bean sprouts, and similar products.

Functional Features

  • Utilizes high-precision, high-standard customized sensors.
  • Factory parameter reset function with support for multi-segment weight calibration.
  • Automatic pause during material shortage ensures more stable weighing.
  • Independently adjustable amplitude for each line during operation enables uniform feeding.
  • Multi-language interface for user-friendly operation in global markets.
  • Stores 100 parameter sets for diverse material requirements, with a help menu for easy learning and use.

Mechanical Characteristics

  • Maximum material length capacity: 300 mm.
  • IP65 rated chassis with chequer plate materials for product-contact components.
  • Built-in drying and moisture removal system effectively prevents damage to electrical components in humid environments.
  • 60°discharge chute with a minimal angle ensures smooth material flow.
  • Adjustable bidirectional rotary main vibrating mechanism allows even material distribution into linear vibratory plates.
  • Cast aluminum reinforced integrated base enhances structural integrity and reduces weighing stabilization time.

Keywords

noodle combination scale , wet soft strip weighing , rice noodle weighing , high-speed weighing , eco-friendly , adhesive rubber strips

ModelKB-A10KB-A14KB-AM14
Weighing Range10~1000g10~1500g100~3000g
Accuracy ClassX(0.5)X(0.5)X(1)
Max. Speed30P/M60P/M60P/M
Hopper Capacity2.5L2.5L5L
Operation Interface7-inch Touch Screen7-inch Touch Screen7-inch Touch Screen
Optional AccessoriesCollection Hopper / Data Printer / Overweight Sorting DeviceCollection Hopper / Data Printer / Overweight Sorting DeviceCollection Hopper / Data Printer / Overweight Sorting Device
Drive ModeStepper MotorStepper MotorStepper Motor
Power Requirements220V/1000W/50/60Hz/10A220V/1500W/50/60Hz/12A220V/1600W/50/60Hz/7.5A
Dimensions (L×W×H)1620(L)×1100(W)×1420(H)1750(L)×1160(W)×1420(H)2200(L)×1600(W)×1922(H)
Weight380kg490kg588kg
