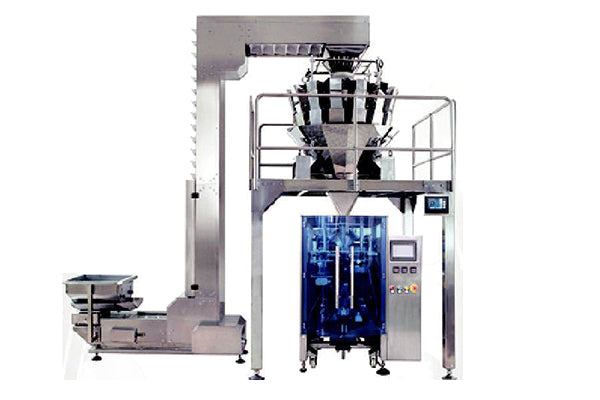

High-Efficiency Full Automatic Large Granular Product Weighing and Bag Packaging Equipment

Visa Mastercard American Express PayPal Diners Club Discover

This comprehensive system is designed to streamline your production process, offering automatic feeding, precise dosing, efficient filling, secure sealing, date printing, and final product conveying. Engineered for accuracy and speed without compromising material integrity, it's the ideal solution for large granular products.

Equipment Technical Parameters:

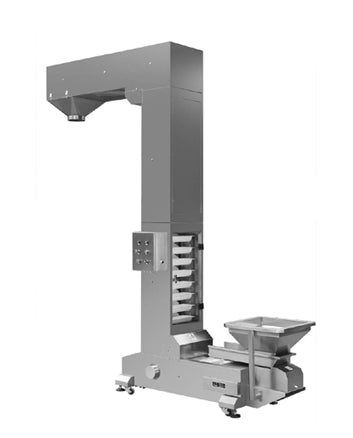

  1. Vibration Feeding Type Z Material Lifting Equipment

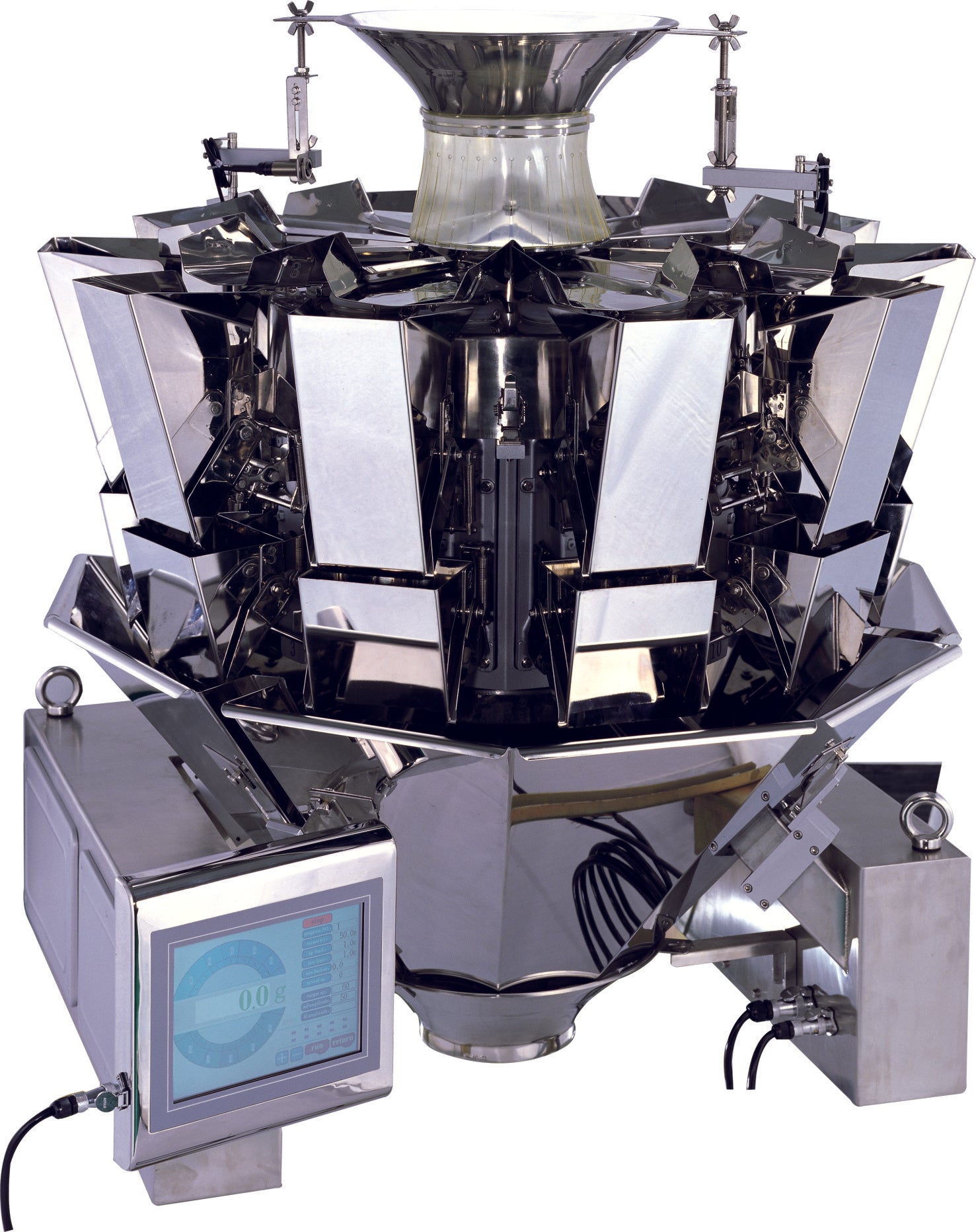

  2. Advanced Computer Combination Weighing System
  3. High-Speed Automatic Vertical Packaging Machine

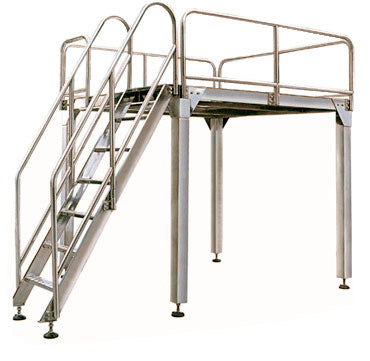

  4. Sturdy Working Platform

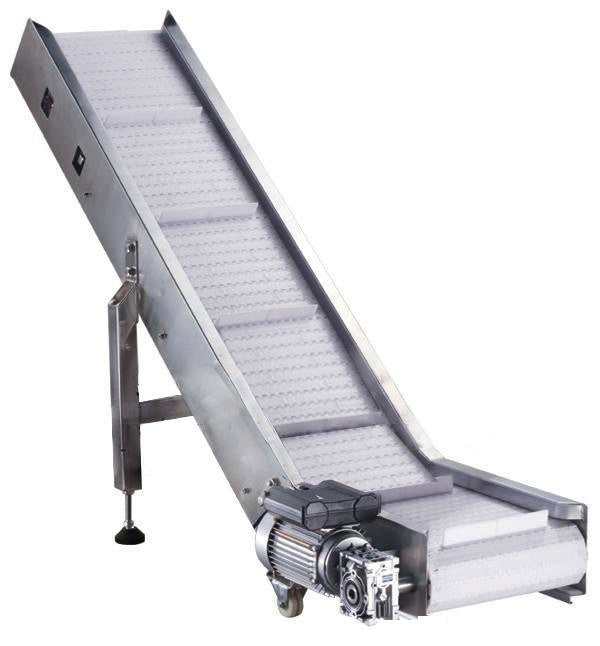

  5. Reliable Product Conveying System

Key Features:

  • Fully Automated Process: From feeding to final product output, every step is automated for maximum efficiency.
  • High Accuracy Weighing: Achieve precise weight control with our advanced combination weighing technology.
  • High Throughput: Significantly increase your packaging speed without damaging products.
  • Versatile Application: Perfectly suited for a wide range of anomalous solid and granular materials.

Applications:

This versatile machine is ideal for packaging:

  • Puff snack foods
  • Potato chips
  • Crispy rice
  • Candies and sweets
  • Apple chips
  • Dumplings
  • Cookies
  • Dried fruits
  • Seeds and nuts
  • Medical supplies
  • Frozen foods
  • And much more!

Invest in our automatic weighing and packaging equipment to enhance your production capabilities and ensure consistent, high-quality packaging for your granular products.

ModelKL-C420KL-C520
Making bag size(L)60-300mm, (W)60-200mm(L)80-350mm, (W)80-250mm
Packing Speed25-75 Bags/Min25-65 Bags/Min
Power Supply220V, 50-60Hz, 3.0Kw220V, 50-60Hz, 3.6Kw
Compressed air consumption6-8 kg/m² ~0.3 m³/min6-8 kg/m² ~0.3 m³/min
Weight500 kg700 kg
Dimension1450×1000×1400 mm1450×1100×1500 mm
