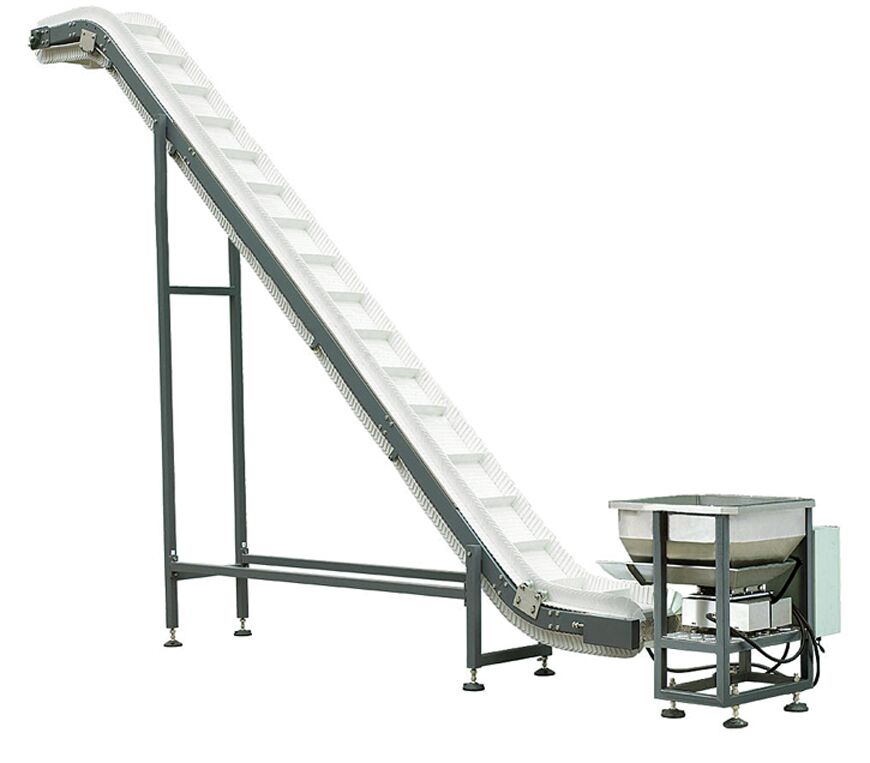

Kunbupack Steeply Inclined Belt Conveyor - Auxiliary Transport for Large Granule Frozen Products

This Steeply Inclined Belt Conveyor primarily consists of a corrugated sidewall belt, drive unit, drive pulley, tail pulley, pressure belts, support idlers, and return idlers. The corrugated sidewall belt features flexible and expandable rubber sidewalls in S or W shapes along both edges. Transverse cleats are affixed at regular intervals between these sidewalls on the base belt, forming enclosed compartments to carry materials efficiently.
The drive unit powers the drive pulley, which, through friction between the pulley and the belt, propels the belt in a continuous cycle. Material fed onto the belt at the loading end is transported along the incline and discharged at the designated outlet.

Functional Features

The conveyor operates at steep angles ranging from 0° to 90°, with a maximum handling capacity of up to 6,000 m³/h. This high-angle transport solution for bulk materials significantly reduces equipment footprint requirements.

Application

The system ensures smooth transition from horizontal to inclined operation while delivering low energy consumption, simple structural design, and easy maintenance.
With broad applications across grain, construction materials, and chemical industries, this system efficiently handles bulk materials with bulk densities ranging from 0.5 to 4.2 t/m³.
