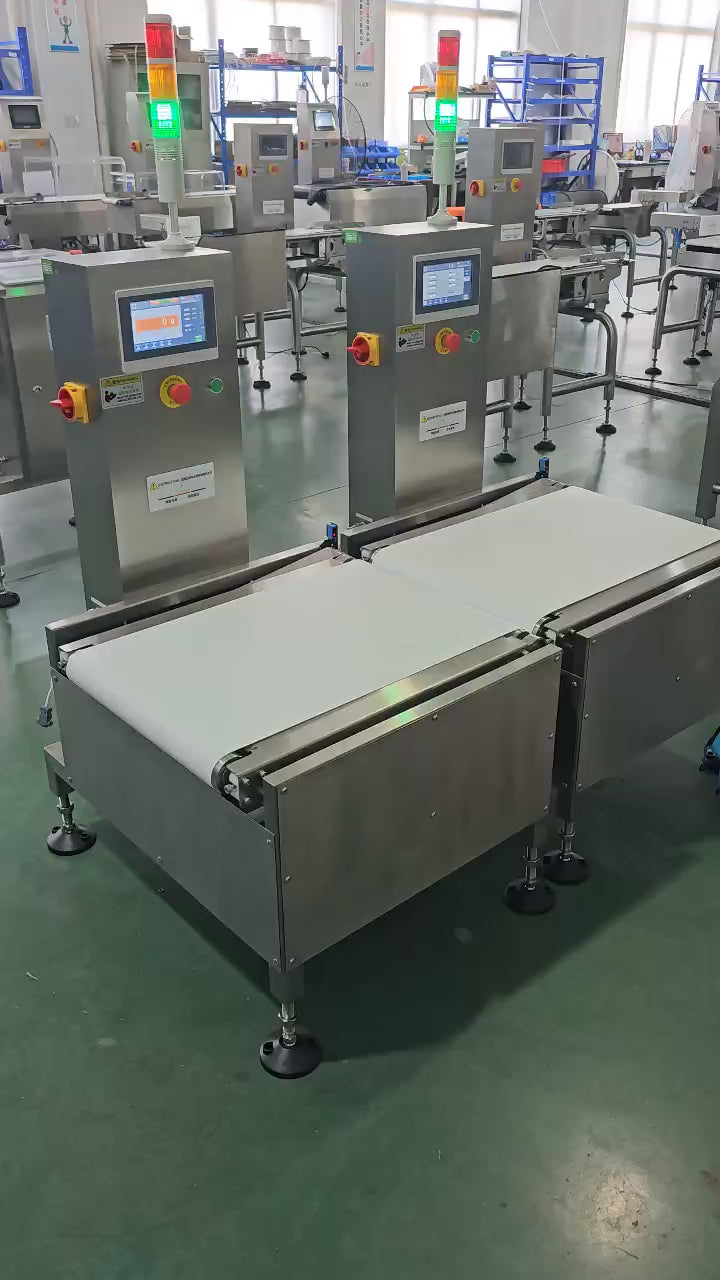

Weighing Inspection Machine
Couldn't load pickup availability
Ask a question
Share
Keypack Intelligent Technology Co., Ltd. Technical Specifications
Professional keypack intelligent technology co., ltd. with production speed up to 40 pcs/min, machine dimensions: 1000×600mm (tabletop size), weight: 150KG.Ideal for Food packaging, Pharmaceutical packaging, Daily chemical packaging, Cosmetics packaging packaging applications.Supports N/A - Weighing inspection equipment bag types.
Core Technical Specifications
- Production Speed: 40 pcs/min
- Applicable Products: Packaged products (50-50000g); Product dimensions: L≤800mm, W≤600mm, H: 10-800mm
- Machine Dimensions: 1000×600mm (tabletop size)
- Machine Weight: 150KG
- Power Supply & Power: 220V 50-60Hz, 100W
Packaging Types & Formats
- Bag Type: N/A - Weighing inspection equipment
B2B Terms & Conditions
- Customizable Modules: Weighing system, Touchscreen HMI, Rejection system, Conveyor belt, Alarm system
- Lead Time:15-30 days (typical)
- Samples: Available upon request
- OEM/ODM: Custom development available
Applications
- Food packaging
- Pharmaceutical packaging
- Daily chemical packaging
- Cosmetics packaging
| Technical Specifications | Details |
|---|---|
| Model | JZ-600 |
| Sorting Range | 50-50000g |
| Precision | ±5-20g |
| Maximum Sorting Speed | 40 pcs/min |
| Product Dimensions Limit (L×W×H) | 800mm × 600mm × 10-800mm |
| Operation Mode | Touch Operation |
| Operation Interface | 7-inch Touchscreen |
| Rejection Method | Alarm and Machine Stop |
| Belt Height from Ground | 750±50mm (Customizable per customer requirements) |
| Machine Structure & Material | Stainless Steel (SUS304) |
| Power Supply | 220V 50-60Hz |
| Total Power | Approx. 100W |
| Tabletop Size | 1000mm × 600mm |
| Machine Weight | Approx. 150KG |
| Optional Functions | Three-Color Alarm Light, RS485 Output Port |
Need custom specifications or bulk pricing?
Request Quote
