Keypack Intelligent Volumetric Cup Filler KL320 - VFFS Packaging Machine for Granule and Powder Applications
The Keypack Intelligent Volumetric Cup Filler Machine KL320 is designed for high-speed granule and powder packaging with reliable volumetric metering. It delivers 40-100 bags per minute with PLC servo control, intelligent temperature management, and pneumatic systems. Ideal for food powder packaging, pharmaceutical granule filling, and chemical material metering across multiple bag formats.
Product Overview

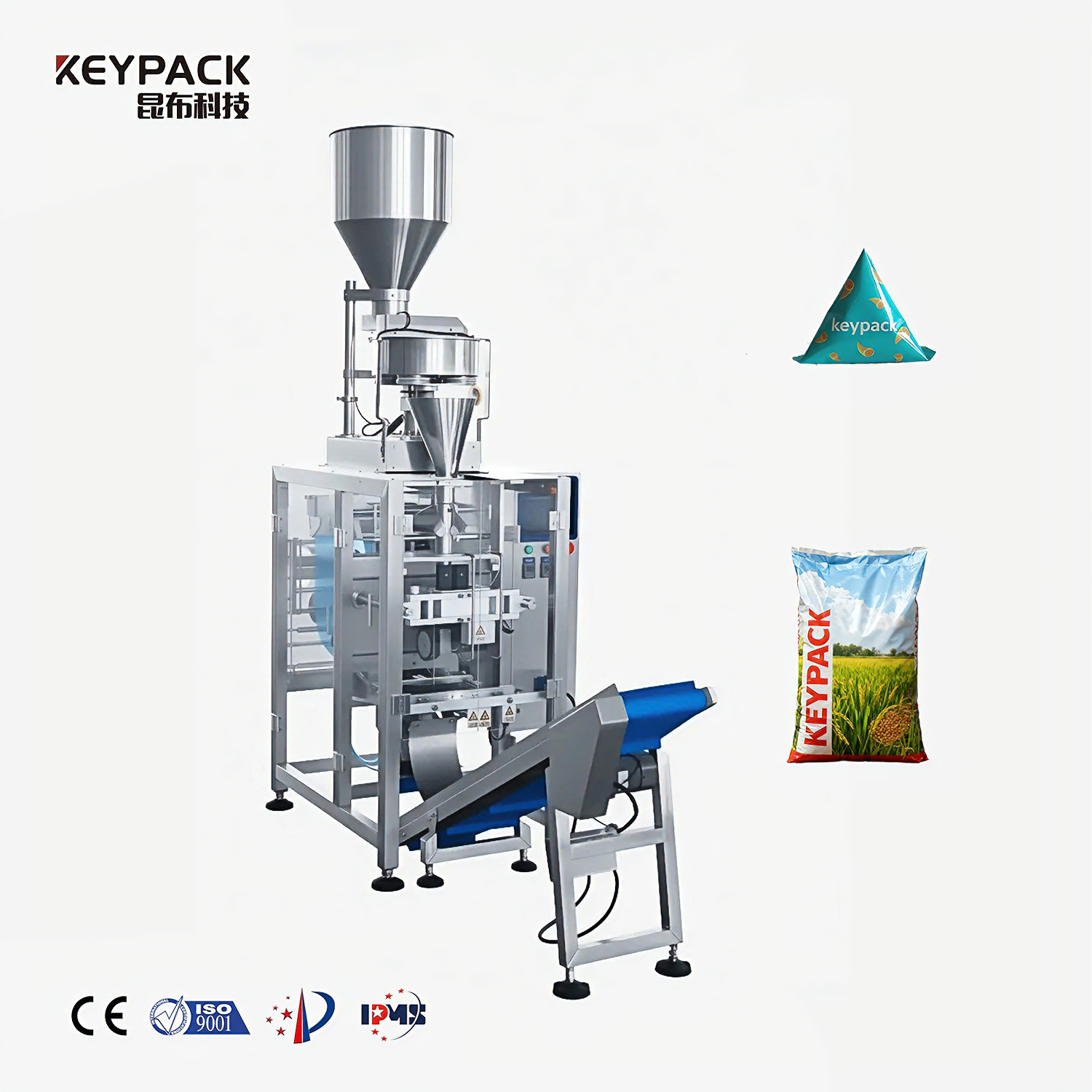

The KL320 VFFS Power Packaging Machine is a compact VFFS with cup filler technology, engineered for precise volumetric metering of granular and powder materials. This automatic granule filler integrates bag forming, volumetric cup filling, heat sealing, and cutting into one streamlined system, making it suitable for small to medium production lines in food, pharmaceutical, and chemical industries.
Built with a universal cup metering system, the KL320 offers consistent portion control for a wide range of free-flowing and semi-free-flowing materials. The machine supports multiple bag styles including back seal, triangle bag, and gusset back seal formats, providing flexibility for diverse packaging requirements. Its touchscreen HMI stores multiple product parameters, enabling quick changeovers without reprogramming.
The Keypack Intelligent (Kunbupack) granule packaging machine is compatible with various heat-sealable films including Paper/PE, PET/AL, Foil/PE, and Nylon/PE composites, ensuring broad material compatibility for food-grade and pharmaceutical-grade applications. The system can be integrated into semi-automatic or fully automatic packaging lines with upstream feeding equipment such as bucket elevators, vibrating feeders, and downstream conveyors.
Key Features and Machine Characteristics
PLC Servo Control System with Pneumatic Drive
Equipped with an advanced PLC servo system, pneumatic control, and extra-large touchscreen interface, the KL320 delivers enhanced control precision and operational reliability. The intelligent control core manages bag forming, volumetric filling, and sealing processes with high repeatability, supporting stable production across varying material types.
Intelligent Temperature Control for Consistent Sealing
Features smart temperature controllers with accurate heat regulation to ensure smooth, even seals with excellent appearance. The temperature control system prevents leakage and maintains product freshness, critical for food powder packaging and pharmaceutical granule applications.
Multi-Product Parameter Storage
The touchscreen HMI stores packaging process parameters for multiple products. When switching between different materials or bag sizes, operators can recall saved settings instantly, reducing changeover time and improving efficiency in multi-material volumetric metering operations.
Enterprise-Grade Safety Protection
Configured with comprehensive safety protection devices that meet enterprise safety management standards. The integrated fault display system identifies issues in real time, enabling quick troubleshooting and minimizing production downtime.
Versatile Bag Format Capability
Supports multiple bag styles including back seal bags, triangle bags, gusset back seal bags, pillow bags, and hang hole bags. This flexibility allows manufacturers to adapt packaging formats based on product requirements and market preferences.
Volumetric Cup Metering System
Utilizes a reliable volumetric cup filler for accurate, consistent filling of granular and powder products. The universal cup metering system ensures precise portion control and can be configured for various cup sizes to accommodate different fill weights and product densities.
Application Areas
Food Industry - Granule and Powder Packaging
Sugar packaging with volumetric cup metering for consistent portion control. Milk powder packaging using pneumatic conveying to hopper for dust-free filling. Milk tea powder, instant coffee, protein powder, and nutritional supplement packaging with back seal or gusset formats. Starch, flour, and baking ingredient packaging for retail and food service. Spices, seasonings, and condiment packaging in small sachets or stand-up pouches. Snack food packaging including nuts, seeds, dried fruits, and granola with optional snack food multihead weigher integration. Pet food packaging for dry kibble, treats, and nutritional supplements using pet food packaging configurations.
Pharmaceutical Industry - Medical Granule and Powder Filling
Pharmaceutical powder packaging with GMP-compliant materials and sealing validation. Traditional Chinese medicine powder and herbal supplement packaging in triangle bags or back seal formats. Medical granules, vitamin powders, and health supplement packaging with precise volumetric metering. Nutraceutical powder packaging for protein, collagen, and functional ingredient products.
Chemical Industry - Industrial Powder Metering
Chemical powder packaging for additives, pigments, and specialty compounds. Detergent powder and washing powder packaging in medium-sized sachets. Industrial additive packaging with dust control and sealed bag formats.
Agricultural and Seed Industry
Seed packaging with volumetric cup filling for consistent seed counts. Fertilizer and pesticide powder packaging in moisture-resistant films. Agricultural chemical packaging with safety labeling and sealed formats.
Integration with Automatic Packaging Lines
The KL320 VFFS with cup filler can be integrated into complete automatic packaging lines as the primary filling and sealing unit. Compatible with upstream equipment including bucket elevators, screw conveyors, vibrating feeders, and pneumatic conveying systems. Can be combined with high accuracy weighing machines, nut and seed weighing machines, or multihead weighers for weight-based filling applications. Downstream integration options include conveyors, carton packing systems, labeling machines, and palletizing equipment for end-to-end automation.
Technical Specifications
| Model |
KL-320 |
| Bag Type |
Back seal, Triangle bag, Gusset back seal |
| Bag Size |
W: 50-150mm, L: 60-250mm |
| Packaging Speed |
40-100 bags/min (depending on actual conditions) |
| Power |
1P/220V/50HZ, 3.0KW |
| Compressed Air |
6-8kg |
| Air Consumption |
0.3m³/min |
| Machine Weight |
300kg |
| Machine Dimensions |
L1400 × W1000 × H1200mm |
Customization and Optional Modules
The KL320 volumetric cup filler machine can be customized with various modules and configurations to meet specific production requirements. Optional bag formats include pillow bags, hang hole bags, and custom shapes. Volumetric cup sizes can be configured for different fill weights and product densities. Integration interfaces available for upstream feeding equipment and downstream packaging line components. Material contact parts can be specified in food-grade stainless steel for pharmaceutical and food applications.
Delivery and Support
Standard delivery includes machine installation guidance, operational training, and technical documentation. Commissioning support available for FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing) validation. Spare parts kits and consumables available for ongoing maintenance. Technical support provided for troubleshooting, parameter optimization, and production line integration.
