Introduction: The Critical Role of X-ray Inspection in Modern Manufacturing

In an era of zero-tolerance food safety policies and stringent quality standards, X-ray inspection technology has become indispensable for manufacturers across food, pharmaceutical, and industrial sectors. Unlike traditional metal detectors that only identify ferrous and non-ferrous metals, advanced X-ray inspection systems detect a comprehensive range of contaminants—including glass, stone, bone, dense plastics, and metals—regardless of packaging type.

The Kunbupack Side-Beam X-ray Inspection System represents the latest evolution in contamination detection technology, combining pan-AI algorithms with high-precision imaging to deliver pharmaceutical-grade inspection at production-line speeds. This comprehensive guide explores the diverse applications and use cases where X-ray inspection systems provide unmatched protection for brands, consumers, and regulatory compliance.

Understanding Side-Beam X-ray Inspection Technology

How X-ray Inspection Works

X-ray inspection systems use controlled radiation to create detailed images of products and packaging. The technology operates on a simple principle: different materials absorb X-rays at different rates based on their density.

The Inspection Process:

1. X-ray Generation: A controlled X-ray beam passes through the product on the conveyor
2. Differential Absorption: Dense contaminants absorb more X-rays than surrounding product
3. Image Capture: Detectors create a detailed grayscale image showing density variations
4. AI Analysis: Advanced algorithms identify anomalies and contaminants in real-time
5. Automatic Rejection: Contaminated products are diverted from the production line

Side-Beam vs. Top-Down X-ray Systems

Side-beam X-ray inspection offers unique advantages for specific applications:

• Vertical product orientation: Ideal for bottles, jars, cans, and standing pouches
• Fill level verification: Simultaneously checks for contaminants and proper fill height
• Seal integrity inspection: Detects incomplete seals and closure defects
• Compact footprint: Smaller floor space requirement than top-down systems
• Multi-lane capability: Inspect multiple product streams simultaneously

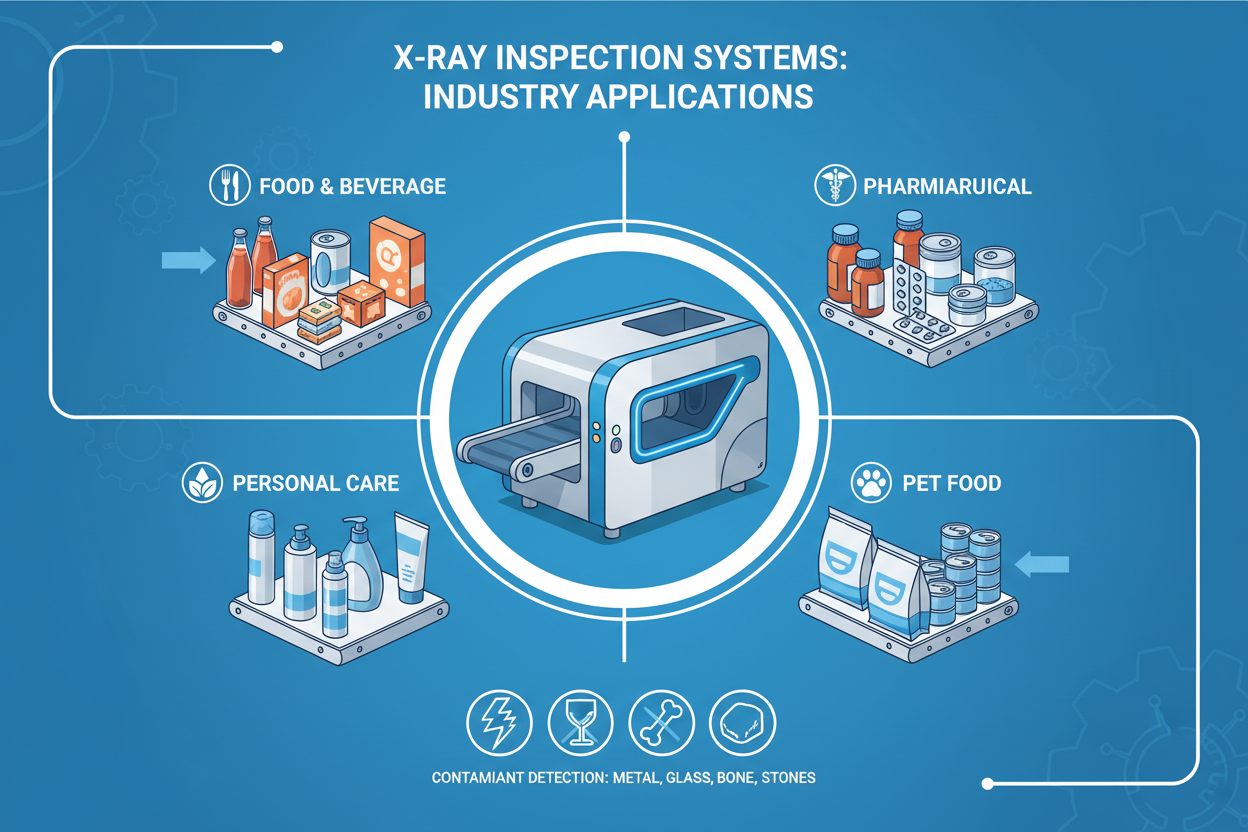

Comprehensive Application Range Across Industries

1. Food and Beverage Manufacturing

Food safety is paramount, and X-ray inspection provides the most comprehensive contamination detection available. The Kunbupack X-ray system excels across diverse food applications:

Packaged Foods

• Canned goods: Vegetables, fruits, soups, sauces, and ready meals
• Glass jars: Jams, pickles, baby food, and condiments
• Plastic containers: Yogurt, desserts, deli salads, and fresh-cut produce
• Pouches and sachets: Sauces, seasonings, instant meals, and liquid products
• Cartons and boxes: Cereals, crackers, cookies, and dry mixes

Meat, Poultry, and Seafood

• Fresh and frozen meat: Detection of bone fragments, metal clips, and injection needles
• Processed meats: Sausages, deli meats, bacon, and marinated products
• Poultry products: Whole birds, cuts, nuggets, and ground poultry
• Seafood: Fish fillets, shellfish, breaded products, and value-added items

X-ray inspection is particularly critical for bone detection in deboned meat and poultry—a hazard that metal detectors cannot address.

Bakery and Confectionery

• Bread and baked goods: Detection of metal fragments from mixers and ovens
• Cookies and crackers: Identification of stone, glass, and hard plastic contaminants
• Chocolate and candy: Metal detection in foil-wrapped products (impossible with metal detectors)
• Snack foods: Chips, pretzels, nuts, and extruded snacks

Dairy Products

• Bottled milk and beverages: Fill level verification and cap inspection
• Yogurt and cultured products: Container integrity and contamination detection
• Cheese: Detection of packaging fragments and foreign materials
• Butter and spreads: Metal and hard plastic detection in foil packaging

Beverages

• Bottled water and soft drinks: Fill level, cap presence, and contamination detection
• Juice and nectars: Glass fragment detection in glass bottles
• Alcoholic beverages: Quality control for beer, wine, and spirits
• Energy and sports drinks: Can integrity and fill verification

2. Pharmaceutical and Nutraceutical Manufacturing

Pharmaceutical production demands the highest quality standards, and X-ray inspection provides validated, traceable contamination control:

Solid Dose Pharmaceuticals

• Tablet bottles: Metal fragment detection and tablet count verification
• Capsule containers: Contamination detection and fill level confirmation
• Blister packs: Missing tablet detection and seal integrity verification
• Bulk pharmaceutical containers: Pre-packaging contamination screening

Liquid Pharmaceuticals

• Syrups and suspensions: Glass fragment detection in glass bottles
• Injectable solutions: Particulate matter detection in vials and ampoules
• Oral solutions: Fill level verification and cap inspection

Nutraceuticals and Supplements

• Vitamin and mineral supplements: Tablet/capsule count and contamination detection
• Protein powders: Metal detection in foil-lined pouches and tubs
• Herbal supplements: Foreign material detection in capsules and tablets
• Gummy vitamins: Quality control and contamination screening

The Kunbupack system's GMP certification and data traceability features ensure full regulatory compliance for pharmaceutical applications.

3. Chemical and Personal Care Products

Non-food applications benefit from the same contamination detection capabilities:

Household Chemicals

• Cleaning products: Detergents, disinfectants, and specialty cleaners
• Laundry products: Liquid detergents, fabric softeners, and stain removers
• Dishwashing products: Liquids, gels, and powder formulations

Personal Care and Cosmetics

• Shampoos and conditioners: Fill level and cap presence verification
• Lotions and creams: Container integrity and contamination detection
• Cosmetics: Quality control for foundations, serums, and liquid makeup
• Oral care: Toothpaste tubes and mouthwash bottles

Industrial Chemicals

• Automotive fluids: Motor oil, antifreeze, and brake fluid
• Lubricants: Industrial and specialty lubricants
• Agricultural chemicals: Liquid fertilizers and crop protection products

4. Pet Food and Animal Nutrition

The rapidly growing pet food industry faces the same safety standards as human food:

• Dry kibble: Bone fragment and metal detection in bags and boxes
• Wet pet food: Contamination detection in cans and pouches
• Pet treats: Quality control for bones, chews, and training treats
• Specialty diets: Premium and prescription pet foods requiring highest quality

Specific Contaminant Detection Capabilities

Metallic Contaminants

X-ray systems detect all metal types, even in challenging conditions:

• Ferrous metals: Iron, steel, and stainless steel fragments
• Non-ferrous metals: Aluminum, copper, brass, and lead
• Stainless steel: Difficult-to-detect grades including 316 and 304
• Metal in foil packaging: Detection through aluminum and metallized films (impossible with metal detectors)

This comprehensive metal detection makes X-ray systems superior to traditional metal detectors, especially for products in metallized packaging.

Non-Metallic Contaminants

The critical advantage of X-ray inspection is detecting non-metallic hazards:

• Glass: Fragments from broken containers, light bulbs, or windows
• Stone and mineral: Rocks, gravel, and mineral contaminants
• Bone: Calcified bone fragments in meat and poultry products
• Dense plastics: Hard plastic fragments from equipment or packaging
• Rubber: Gasket material and equipment components
• Ceramic: Fragments from processing equipment

Product Integrity Verification

Beyond contamination detection, X-ray systems perform quality checks:

• Fill level verification: Ensure proper product volume in containers
• Missing components: Detect missing items in multi-component packages
• Product count: Verify correct number of items (tablets, candies, etc.)
• Seal integrity: Identify incomplete seals and closure defects
• Product shape: Detect broken or malformed products
• Cap presence: Confirm caps and closures are properly installed

Advanced Features of Modern X-ray Inspection Systems

Pan-AI Algorithm Technology

The Kunbupack Side-Beam X-ray Inspection System employs cutting-edge artificial intelligence:

• Machine learning: System learns normal product appearance and identifies anomalies
• Adaptive detection: Automatically adjusts sensitivity for different products
• Zero false positives: Advanced algorithms eliminate nuisance rejections
• Multi-contaminant detection: Simultaneously identifies multiple hazard types
• Continuous improvement: AI refines detection accuracy over time

High Precision and Stability

Reliability is critical for production environments:

• Long service lifetime: Industrial-grade components ensure years of operation
• Consistent performance: Stable detection across temperature and humidity variations
• High-resolution imaging: Detects contaminants as small as 0.5mm depending on product
• Fast inspection speeds: Up to 600 products per minute depending on size

Radiation Safety and Compliance

Safety is paramount in X-ray system design:

• Excellent shielding: Lead-lined enclosures prevent radiation leakage
• Regulatory compliance: Meets FDA 21 CFR 1020.40 and international standards
• Safety interlocks: Automatic shutdown if access panels are opened
• No product activation: Food and products are not made radioactive
• Operator safety: Radiation levels below background environmental levels outside machine
• Regular monitoring: Built-in radiation monitoring and logging

User-Friendly Operation

Intuitive interfaces reduce training time and operator errors:

• Touchscreen HMI: Large, clear display with graphical interface
• Recipe management: Store settings for multiple products with one-touch recall
• Real-time imaging: Operators see X-ray images of inspected products
• Automatic calibration: Self-calibrating systems minimize setup time
• Multi-language support: Interfaces available in multiple languages

Perfect Data Traceability

Regulatory compliance and quality management require comprehensive documentation:

• Image archiving: Store X-ray images of all inspected products
• Rejection logging: Detailed records of all rejected products with timestamps
• Statistical reporting: Production summaries and trend analysis
• Network connectivity: Integration with factory MES and ERP systems
• Audit trail: Complete traceability for regulatory inspections
• Remote access: Cloud-based monitoring and reporting capabilities

Waterproof and Environmental Adaptability

Food production environments demand robust construction:

• IP65/IP69K ratings: Withstands washdown and high-pressure cleaning
• Stainless steel construction: Corrosion-resistant materials for wet environments
• Temperature tolerance: Operates in cold storage and hot production areas
• Humidity resistance: Reliable performance in high-moisture environments
• Dust protection: Sealed enclosures prevent contamination of electronics

Integration with Production Lines

Seamless Line Integration

X-ray inspection systems fit naturally into automated packaging workflows:

Typical Integration Points:

1. After filling and sealing operations
2. Before labeling and case packing
3. As final inspection before palletizing
4. At receiving for incoming ingredient inspection

The Kunbupack system integrates with checkweighing and metal detection equipment for comprehensive quality control.

Automatic Rejection Systems

Contaminated products must be removed quickly and reliably:

• Pneumatic pushers: Air-powered rejection for lightweight products
• Retractable belt sections: Drop-through rejection for heavier items
• Diverter arms: Mechanical diversion to reject lanes
• Reject confirmation: Sensors verify successful rejection
• Lockable reject bins: Secure storage of rejected products for investigation

Multi-Lane Configurations

High-speed production benefits from parallel inspection:

• Inspect 2-4 product lanes simultaneously
• Independent rejection for each lane
• Shared X-ray generator reduces cost
• Compact footprint versus multiple single-lane systems

Regulatory Compliance and Industry Standards

Food Safety Regulations

X-ray inspection helps manufacturers comply with global food safety requirements:

• HACCP: Critical Control Point for physical hazard prevention
• FDA FSMA: Preventive controls for foreign material hazards
• BRC Global Standards: Required for high-risk product categories
• IFS Food: European food safety certification requirements
• GFSI Recognition: Accepted by all GFSI-benchmarked schemes

Pharmaceutical Compliance

• GMP Certification: Good Manufacturing Practice compliance
• FDA 21 CFR Part 11: Electronic records and signatures
• EU GMP Annex 11: Computerized systems validation
• USP Guidelines: United States Pharmacopeia standards

Retail and Brand Requirements

Major retailers increasingly mandate X-ray inspection:

• Walmart, Costco, and other major retailers require X-ray for high-risk products
• Private label manufacturers must meet retailer specifications
• Export markets often require X-ray inspection certification
• Brand protection against contamination incidents and recalls

ROI and Business Case for X-ray Inspection

Cost of Contamination Incidents

A single contamination event can devastate a business:

• Product recalls: $10 million average cost for food recalls
• Brand damage: Long-term sales impact and consumer trust erosion
• Legal liability: Lawsuits and settlement costs
• Regulatory penalties: Fines and increased inspection frequency
• Lost production: Line shutdowns during investigations
• Customer losses: Retailers delist products after incidents

Quantifiable Benefits

1. Recall Prevention: Eliminating even one recall justifies X-ray investment

2. Reduced Waste: Precise detection minimizes false rejections versus over-sensitive metal detectors

3. Labor Savings: Automated inspection eliminates manual checking

4. Quality Improvement: Fill level and integrity checks reduce customer complaints

5. Market Access: Meet retailer and export requirements for premium markets

6. Insurance Benefits: Lower premiums with documented contamination control

Typical Payback Period

Most manufacturers achieve ROI within 18-36 months through:

• Avoided recall costs (primary driver)
• Reduced product waste and rework
• Labor reduction from automated inspection
• Access to new customers requiring X-ray inspection
• Premium pricing for certified quality products

Selecting the Right X-ray Inspection System

Key Specification Considerations

1. Product Characteristics:

• Size range (height, width, length)
• Weight and density
• Packaging type (metal, glass, plastic, flexible)
• Product orientation (horizontal, vertical)

2. Contaminant Detection Requirements:

• Minimum contaminant size to detect
• Contaminant types (metal, glass, stone, bone, etc.)
• Detection sensitivity needed
• False rejection tolerance

3. Production Requirements:

• Line speed (products per minute)
• Single or multi-lane configuration
• Integration with existing equipment
• Available floor space and height clearance

4. Environmental Conditions:

• Washdown requirements (IP rating needed)
• Temperature and humidity ranges
• Dust and moisture exposure
• Cleanroom or sanitary design needs

5. Regulatory and Compliance:

• Industry certifications required (HACCP, GMP, etc.)
• Data logging and traceability needs
• Validation documentation requirements
• Audit and inspection preparation

Questions to Ask Suppliers

• Can you demonstrate detection of my specific contaminants in my product?
• What is the smallest contaminant size detectable in my application?
• What is the expected false rejection rate?
• How does the system handle product variation (size, density, orientation)?
• What validation and qualification documentation is provided?
• What is the warranty coverage and service response time?
• Are software updates and algorithm improvements included?
• What training and ongoing support is provided?

Installation, Validation, and Maintenance

Installation Best Practices

• Site preparation: Level floor, adequate electrical service, and ventilation
• Radiation survey: Verify shielding effectiveness and safety compliance
• Line integration: Proper conveyor alignment and height matching
• Network connectivity: IT infrastructure for data logging and remote access

Validation and Qualification

For regulated industries, follow structured validation protocols:

1. Installation Qualification (IQ): Verify equipment installed per specifications
2. Operational Qualification (OQ): Confirm all functions operate correctly
3. Performance Qualification (PQ): Demonstrate detection capability with test samples
4. Ongoing Verification: Regular testing with certified test pieces

Preventive Maintenance

The Kunbupack system requires minimal maintenance:

Daily:

• Visual inspection and cleaning of conveyor
• Verification test with standard test pieces
• Review of rejection logs and statistics

Weekly:

• Clean detector windows and enclosure
• Inspect rejection mechanism operation
• Verify image quality and sensitivity

Monthly:

• Calibration verification
• Radiation safety survey
• Software backup and updates

Annual:

• Comprehensive performance qualification
• X-ray tube and detector assessment
• Full system validation and documentation update

Future Trends in X-ray Inspection Technology

Emerging Innovations

• Deep learning AI: Neural networks for even more accurate contaminant identification
• 3D imaging: Volumetric analysis for complex product geometries
• Spectral X-ray: Material identification based on X-ray absorption spectra
• Inline CT scanning: Computed tomography for ultimate inspection detail
• Edge computing: Faster processing and reduced network dependency
• Augmented reality: AR interfaces for maintenance and troubleshooting

Industry 4.0 Integration

• Cloud-based analytics and benchmarking across multiple facilities
• Predictive maintenance using machine learning
• Blockchain integration for supply chain traceability
• Digital twin technology for virtual commissioning and optimization
• Automated recipe optimization based on production data

Conclusion: Essential Protection for Modern Manufacturing

X-ray inspection technology has evolved from a specialized tool to an essential component of comprehensive quality control programs. The ability to detect metallic and non-metallic contaminants, verify product integrity, and provide complete traceability makes X-ray systems indispensable for manufacturers committed to product safety and quality excellence.

The Kunbupack Side-Beam X-ray Inspection System delivers the advanced capabilities modern manufacturers require: pan-AI algorithms for zero false positives, high precision and stability for reliable operation, excellent radiation safety, intuitive operation, perfect data traceability, waterproof construction, and strong environmental adaptability.

Whether you're producing food and beverages, pharmaceuticals, personal care products, or industrial chemicals, X-ray inspection provides unmatched protection against contamination incidents that can devastate brands and endanger consumers. As regulatory requirements tighten and quality expectations rise, X-ray inspection is no longer optional—it's essential for competitive success and long-term business sustainability.

Ready to implement comprehensive contamination detection in your production line? Explore our complete range of quality inspection equipment and discover how X-ray technology can protect your brand, satisfy regulators, and deliver measurable ROI through recall prevention and quality improvement.

Take Action Today

Contact our inspection technology specialists to discuss your specific contamination detection challenges and receive a customized X-ray inspection solution recommendation. With proven expertise across food, pharmaceutical, and industrial applications, we'll help you select the right system for your production requirements and regulatory obligations.
