Kunbupack Metal Detector

Visa Mastercard American Express PayPal Diners Club Discover

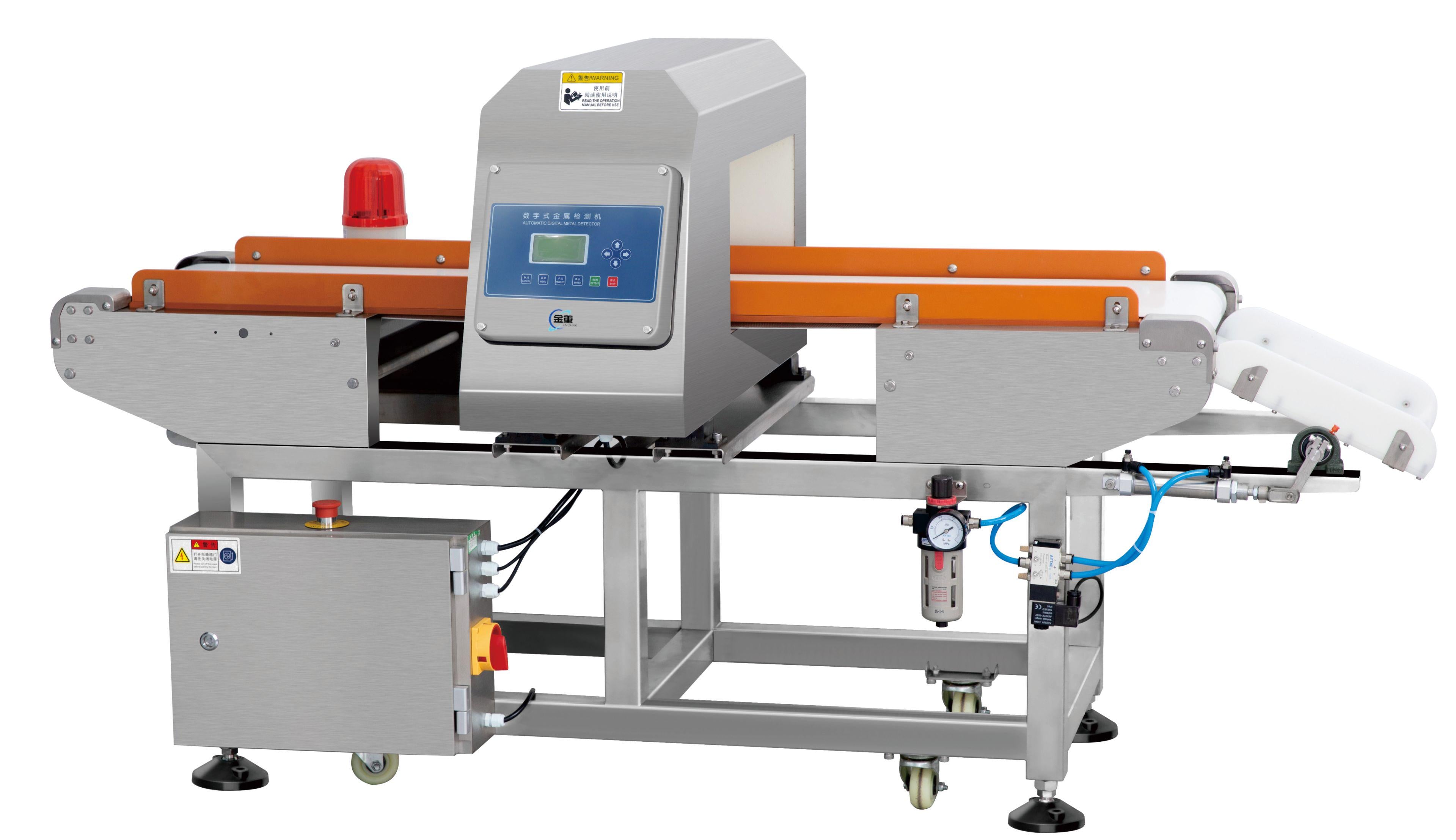

This Kunbupack Metal Detector is capable of identifying both magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.). Even fine metal particles embedded within products can be reliably detected.

Scope of Application

  • Food Industry:Inspection of products such as beverages, sauces, canned goods, nuts, and candies.
  • Pharmaceutical Industry:Compliant inspection of pharmaceutical granules, oral liquids, ointments, etc. (Clean-grade models are available).
  • Daily Chemical Industry:Inspection of daily chemical products like shampoo, laundry detergent, cosmetic emulsions, and toothpaste.

Features

  • High Sensitivity:Detects even minute ferrous, non-ferrous, and stainless steel contaminants.
  • Advanced DSP:Utilizes Digital Signal Processing for stable performance and reduced false rejects.
  • User-Friendly Interface:Simple touchscreen controls for easy setup and operation.
  • Hygienic Design:Constructed with food-grade or CIP-compatible materials for easy cleaning.
  • Robust Construction:Built for reliable performance in demanding industrial environments.
  • Customizable: Available in various aperture sizes and configurations to suit specific production lines.

Keywords

Digital Metal Detector, Metal Detection System, Industrial Metal Detector, metal detectors for food production,metal detector ferrous and nonferrous,High Sensitivity, Stainless Steel Detection, HACCP Compliance, Auto Rejection Conveyor Belt System, Digital Signal Processing,Zero False Positives, Easy Integration, Reliable Performance,GMP Certified,Food Metal Detection, Pharmaceutical Metal Detector

Technical SpecificationsDetails
Detection Sensitivity (No-Load Condition)Fe≥φ2.0mm, Non-Fe≥φ3.0mm, Sus304≥φ3.5mm
Effective Detection Aperture Width600mm
Effective Detection Aperture Height300mm
Conveying Capacity30kg/time
Maximum Conveyor Belt Speed25m/min
Conveying DirectionLeft to Right (facing the screen)
Conveyor Belt Height750±50mm (customizable per customer requirements)
Alarm ModeAlarm and Machine Stop
Conveyor Belt MaterialPVC Belt
Protection LevelIP65
Display & Operation MethodLCD Panel with Key Input
Power Supply RequirementAC220V 50-60Hz
Main Body MaterialFull Stainless Steel (SUS304)
