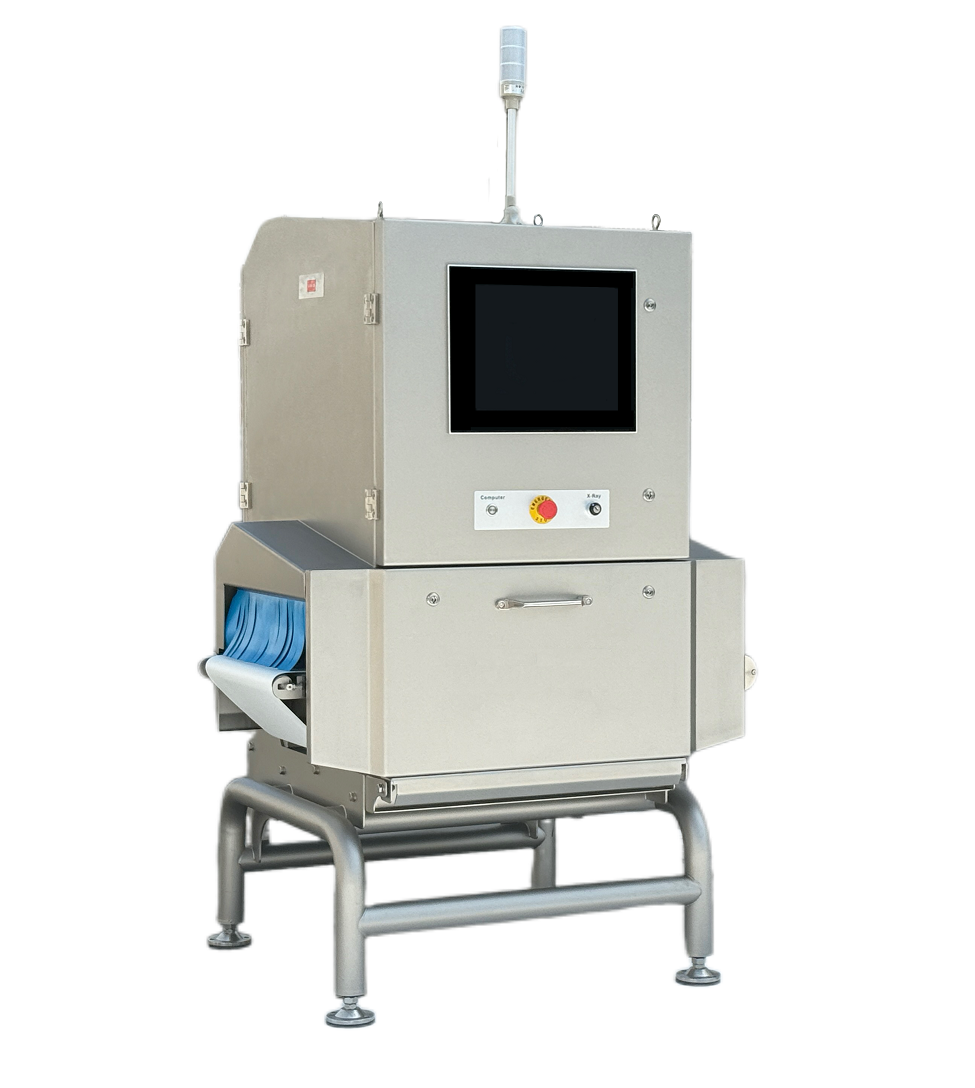

This Kunbupack X-ray foreign detector can detect metallic and hard non-metallic in metal and non-metallic packaging, and is suitable for various industries such as food, medicine, and chemical products .
Digital Metal Detector, Metal Detection System, Industrial Metal Detector, metal detectors for food production,metal detector ferrous and nonferrous，High Sensitivity, Stainless Steel Detection, HACCP Compliance, Auto Rejection Conveyor Belt System, Digital Signal Processing,Zero False Positives, Easy Integration, Reliable Performance,GMP Certified,Food Metal Detection, Pharmaceutical Metal Detector
| Technical Specifications | Details |
|---|---|
| Channel Size | Width: 500mm, Height: 250mm; X-ray effective detection area is subject to the trapezoidal diagram |
| Detection Precision | No-load optimal precision: Stainless steel ball φ0.3mm, Ceramic φ0.8mm, Glass φ1.0mm, Stainless steel wire φ0.2*2mm; Actual product detection precision is related to product type, speed and operating environment |
| Industrial Computer | Professional industrial control computer, Windows 10 Professional system; Data interfaces: LAN Port, USB Port |
| Data Management | Image storage: Supports NG/OK image storage (≥500G); Data ports: USB, Network Port |
| Conveyor | Conveyor belt speed: 10-60m/min; Standard conveyor load: Max. 25KG |
| Radiation Safety Index | <1μSv/hour |
| Alarm & Rejection | Audible and visual alarm, Conveyor stop (configurable); Multiple rejection methods optional: Swing arm, Push rod, Drop, Flap, etc.; Air pressure monitoring, Rejection confirmation (optional) |
| Protection Level | Detection channel IP66 |
| Operating Environment | Temperature: 0℃-45℃ (industrial air conditioning cooling); Humidity: 30%-90% (no frost, dehumidifier optional) |
| Power Supply | Single-phase AC220V 50Hz, 1.5kVA Max |
| Machine Material | 304 Stainless Steel |
| Total Machine Weight | 520kg |
