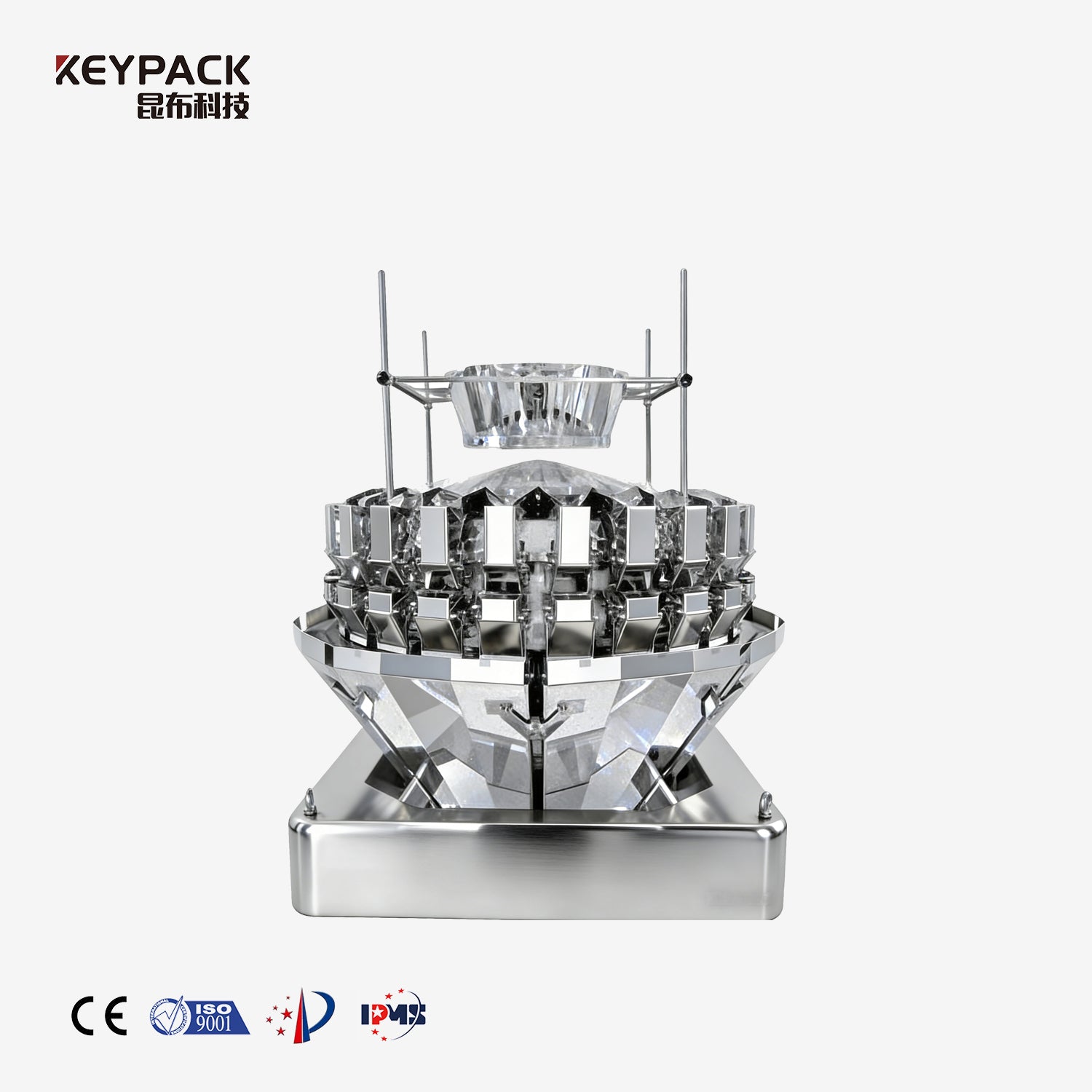

The 24-Head Weigher is designed for high-precision weighing of granular, flake, round, irregular, and puffed materials. It delivers X(0.5) accuracy at speeds up to 60-75 bags/min with step motor control, 10.1" touch screen, and modular CAN bus architecture. Ideal for snacks, nuts, candies, frozen foods, and small hardware components.
Technical Specifications
| Weighing Range |
12~1000g |
| Accuracy |
X(0.5) |
| Max. Speed |
60x4/75×3P/M |
| HopperVolume |
0.5L |
| Control Panel |
10.1"Touch Screen |
| Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System |
Step Motor |
| Power Requirement |
110/220V/2800W/50/60Hz/13A |
| Packing Dimension(mm) |
2100(L)×1480(W)×1130(H) |
| GrossWeight |
650kg |
Applications
-
Food: Sunflower seeds, peanuts, nuts, almonds, raisins, candies, pistachios, potato chips, meatballs, prawn crackers, instant noodles, puffed snacks
-
Pharmaceutical: Capsules, tablets, pills (granular forms)
-
Industrial: Small hardware parts, plastic components, fasteners
Key Features
-
High-Precision Sensors: Specially designed sensors meet high-precision and high-standard requirements for consistent accuracy across all 24 heads.
-
Intelligent Multi-Sampling Mode: Modular circuit boards enable intelligent stabilization for more accurate weighing and reduced giveaway.
-
Smart Fault Alarm: Real-time diagnostics and alarm prompts simplify maintenance and minimize downtime.
-
High-Speed Asynchronous Discharge: Prevents material clogging and ensures smooth, continuous operation at high speeds.
-
Modular CAN Bus Design: High-integration modular architecture with CAN bus technology for reliable communication and easy upgrades.
-
Modbus Protocol Integration: Industry-standard Modbus communication protocol enables seamless integration with packaging machines, combining weigher and packer interfaces into one unified system.
-
Partitioned Main Vibrating Plate: Allows handling of 2-3 mixed materials simultaneously with independent feeding control.
-
Memory Hopper System: Temporary storage of weighed materials increases combination probability and effectively improves weighing accuracy.
-

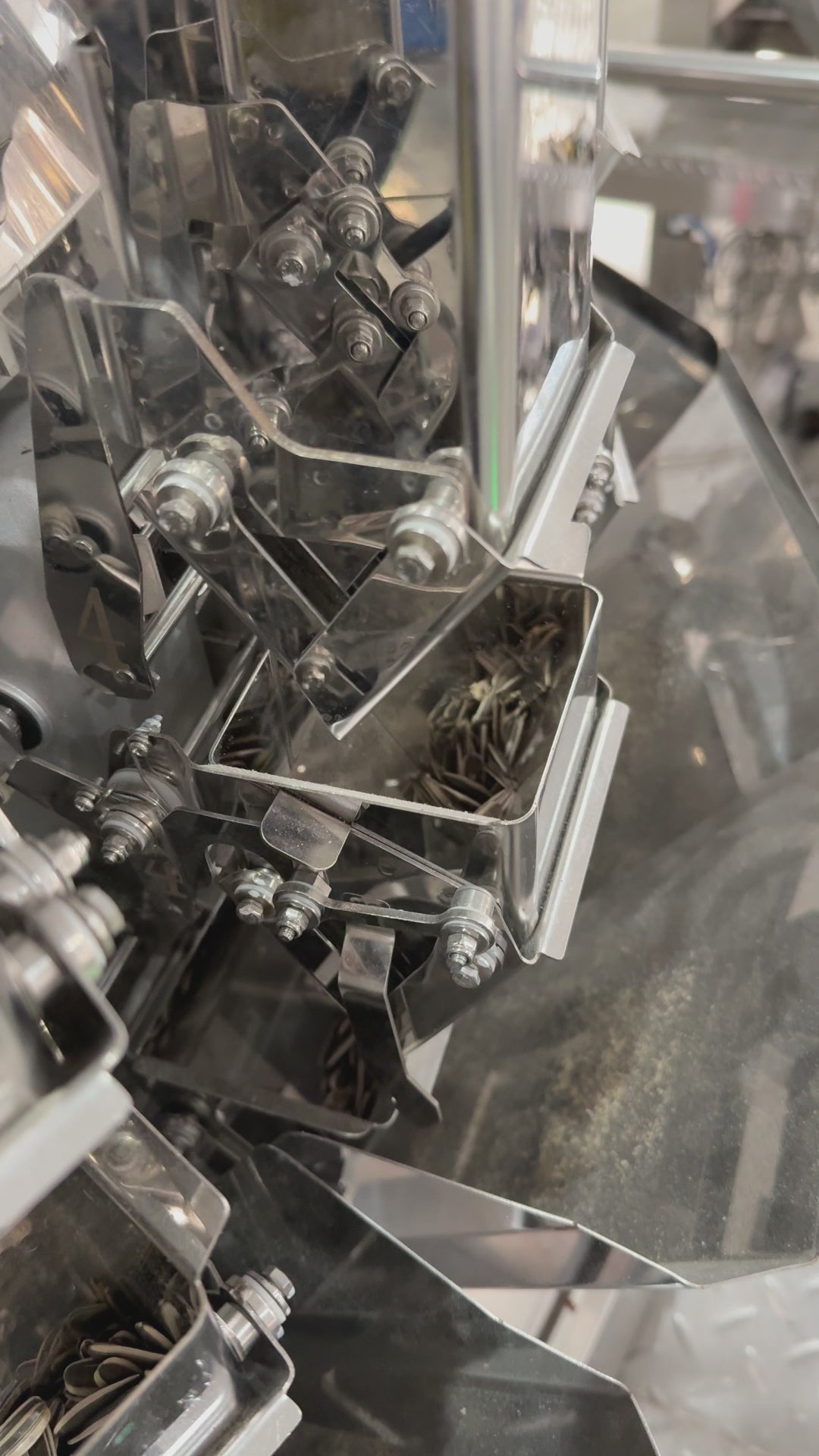

Reinforced Frame Design: Integrated welding of frame-type chassis and middle base enhances machine rigidity, reducing hopper stabilization time and improving speed.
-
Concentrated Hopper Design: Prismatic hoppers concentrate materials for faster, more consistent discharge.
Customization Options
Optional modules: Dimple Plate for sticky products, Timing Hopper for precise discharge control, Printer for production records, Reject Device for quality control
The system supports 2-3 material mixing configurations with independent vibration control for each material type.
Frequently Asked Questions (FAQ)
1. What is the difference between 16-head, 18-head, and 24-head weighers?
The number of heads affects weighing speed and accuracy. More heads = faster speed and better combination probability. The 24-head weigher (KB-A24) handles 60–75 weighments per minute with the highest accuracy potential, ideal for high-volume snack and nut packaging. The 18-head handles 180 weighments per minute, suitable for medium-high volume. The 16-head is optimized for three-layer precision weighing at 100×2 combinations per minute.
2. What is the maximum speed of the 24-head combination weigher?
The KB-A24 delivers up to 60×4/75×3 weighments per minute depending on your target weight setting. Higher target weights and simpler product shapes allow faster speeds. The modular CAN bus architecture ensures synchronized operation across all 24 heads for consistent performance.
3. What weighing range does the 24-head weigher support?
The KB-A24 handles a weighing range of 12–1000g with X(0.5) accuracy class. The 0.5L hopper volume is optimized for small-to-medium portion sizes, making it ideal for snack packs, nut servings, and candy portions.
4. Can the 24-head weigher handle pharmaceutical products?
Yes. The KB-A24 is GMP-ready and suitable for pharmaceutical applications including capsules, tablets, and granular medication forms. Food-grade stainless steel contact parts are available for pharmaceutical compliance. Consult with Keypack for specific pharmaceutical certification requirements.
5. How does the 24-head weigher integrate with packaging machines?
The KB-A24 uses Modbus industrial communication protocol for seamless integration with VFFS machines, pre-made pouch packaging machines, and other packaging equipment. The unified control interface connects directly to your packaging machine’s PLC system, combining both weigher and packer controls into one touchscreen.
