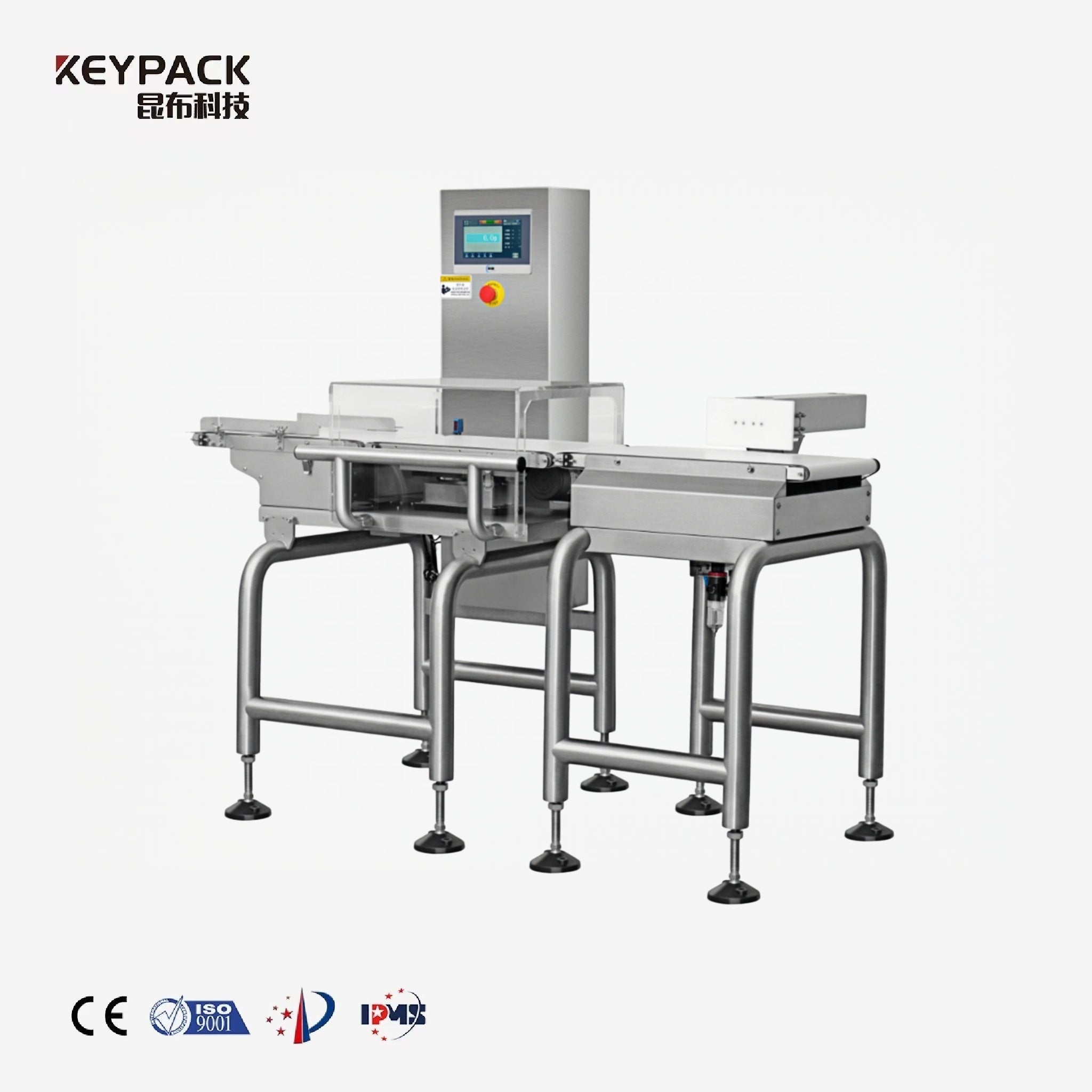

Online Checkweigher Parameter JZ-400

Keypack Intelligent JZ-400 Inline Checkweigher is an automatic dynamic checkweighing system engineered for precise in-line weight detection, overweight/underweight discrimination, and multi-grade weight sorting on high-speed conveyor lines. It delivers ±5–10g weighing accuracy at 30–40 pcs/min with a robust SUS304 stainless steel frame and an intelligent auto-learning control system. Ideal for pharmaceutical, food, toy, hardware, and chemical production lines requiring reliable, automated weight inspection.

Product Overview

The JZ-400 is a conveyor-based industrial checkweigher designed to replace manual weighing and integrate seamlessly into automatic assembly lines and logistics delivery systems. Operated via a large 7-inch color LCD touch screen, the system supports intuitive parameter configuration and real-time weight monitoring without specialized training.

The Keypack Intelligent (kunbupack) JZ-400 Checkweigher stores up to 100 product test profiles, enabling fast changeover between SKUs on multi-product lines. Its independently developed single-chip microcomputer system, combined with a proprietary filtering algorithm, ensures stable and consistent detection data even in demanding industrial environments. The buckle-type conveyor belt design allows easy disassembly for cleaning and maintenance, supporting hygienic production requirements.

With an adjustable conveyor belt speed, photoelectric automatic detection of empty bags, and an automatic zero-point tracking system, the JZ-400 delivers reliable data output across varying production conditions. Password-protected parameter settings ensure that only authorized management personnel can modify system configurations, maintaining process integrity.

Key Features and Machine Characteristics

• High-Accuracy Dynamic Weighing: ±5–10g weighing accuracy with automatic zero-point tracking ensures consistent and reliable detection data across production shifts.
• Auto-Learning System: Automatically adapts to product characteristics, reducing setup time and improving detection stability for new or changing product lines.
• 7-Inch Color LCD Touch Screen: Large-format interface with simple operation and intuitive display; supports multi-language configuration (default: Chinese and English; additional languages available on request).
• 100 Product Memory: Stores up to 100 sets of product test data for fast and convenient changeover between different product types.
• Photoelectric Empty-Bag Detection: Automatically identifies and rejects empty or underweight packages, reducing false rejects and improving line efficiency.
• Push Rejection System: Reliable mechanical push rejection for precise removal of non-conforming products without disrupting conveyor flow.
• SUS304 Stainless Steel Construction: Food-grade stainless steel frame supports hygienic design requirements and withstands demanding industrial environments.
• Easy Maintenance Design: Buckle-type conveyor belt allows quick disassembly, cleaning, and reassembly, minimizing downtime.
• Password-Protected Settings: Parameter configuration is restricted to authorized personnel, ensuring process consistency and data integrity.
• Optional Connectivity: RS-232/485 communication interface and USB port available for data export and system integration; optional three-color light alarm for visual status indication.

Application Areas

• Food Industry: Online weight inspection of packaged snacks, condiments, frozen foods, and beverages on high-speed production lines; detection of underweight or overweight filled pouches and cartons.
• Pharmaceutical Industry: In-line checkweighing of blister packs, bottled tablets, and boxed medical products to meet weight compliance requirements.
• Toy & Hardware Industry: Weight grading and completeness verification of assembled products and kits to ensure correct component counts before packaging.
• Chemical Industry: Automatic weight detection of bagged or bottled chemical products on logistics and filling lines.
• Logistics & E-commerce: Weight sorting and grading on parcel and logistics conveyor systems for accurate shipping weight verification.
• General Manufacturing: Replacement of manual weighing stations on any automatic assembly line requiring consistent, high-speed weight inspection.

Technical Specifications
