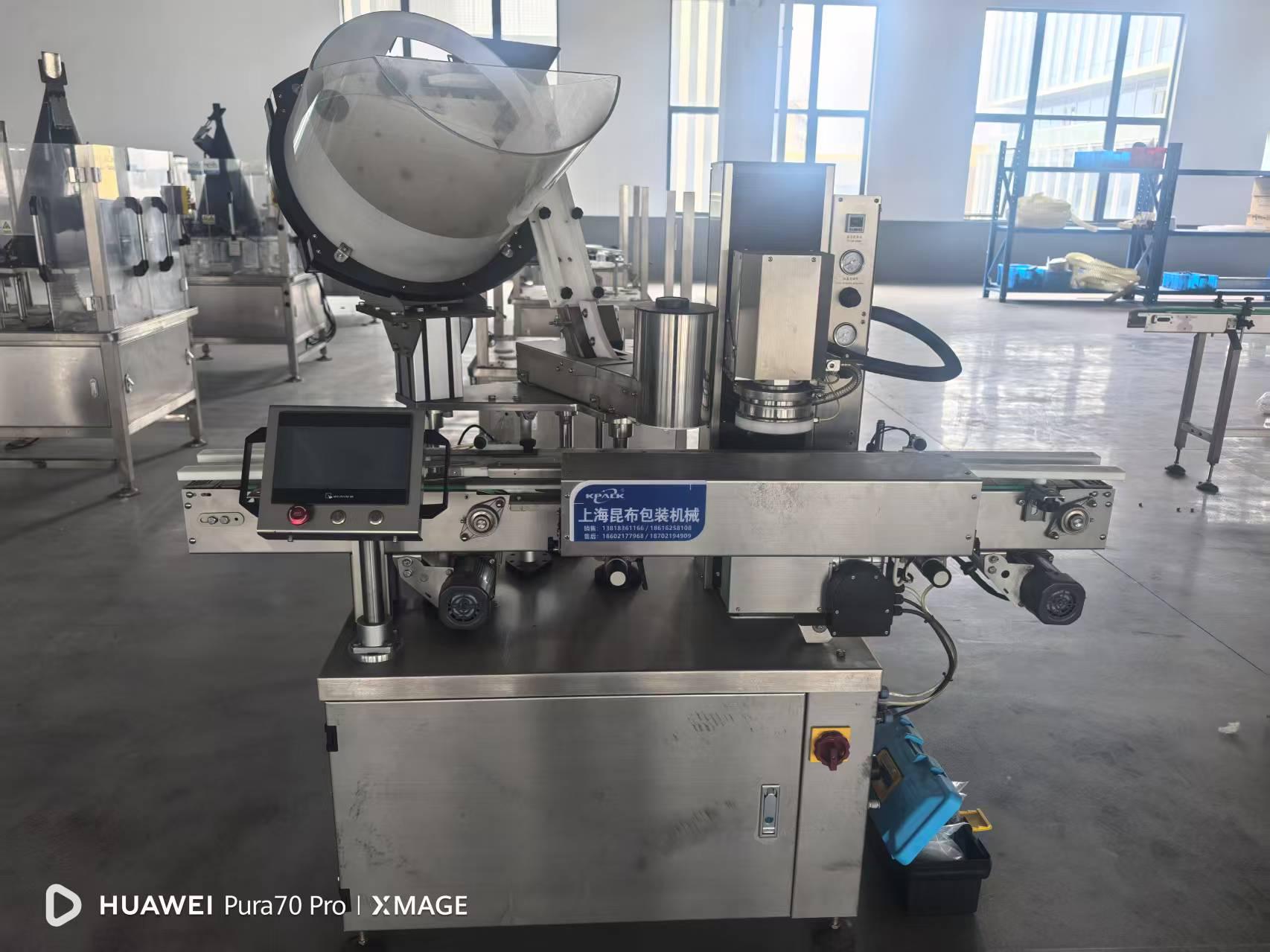

Kunbupack Single-Head Vacuum Nitrogen-Filling Can Sealer

Visa Mastercard American Express PayPal Diners Club Discover

This Kunbupack Single-Head Vacuum Nitrogen-Filling Can Sealer is suitable for products packaged in tinplate cans, aluminum cans, plastic cans, and paper cans with various circular openings. It performs vacuum pumping first, then nitrogen filling, and finally sealing. It effectively extends the shelf life of products and is an ideal equipment for industries such as food, beverage, and pharmaceutical.

Functional Features

  • Automated control and operation, which improves production efficiency and saves labor costs.
  • Can lid linkage control device: when a can body enters, the corresponding lid is allocated; no can body means no lid is provided.
  • The sealing rollers and pressure heads are processed and manufactured using Cr12 die steel, featuring long service life and high sealing degree.
  • The residual oxygen content is less than 3%, which effectively extends the shelf life of products and improves product quality.

Keywords

Vacuum Machine,Modified Atmosphere Packaging Machine,Vacuum Nitrogen Flushing, Residual Oxygen,Steel Rollers, Automatic Operation,Extended Shelf Life, Oxygen Protection, Durable Construction, Cost Saving,Food Canning, Beverage Packaging, Pharmaceutical Sealing, Preservation Packaging

SpecificationDetails
Number of Can Sealing Heads1 unit
Number of Sealing Rolls2 units (Taiwan-sourced): 1 first-pass sealing roll, 1 second-pass sealing roll
Production Capacity5-7 Cans/Minute (varies by can size and residual oxygen standard)
Applicable RangeCan Diameter: φ70-φ127mm, Can Height: 80-190mm
Voltage & FrequencyThree-phase 380V 50/60HZ
Total Machine Power4KW
Machine Weight500kg
Overall Dimensions (L×W×H)2840×900×1780mm
Working Air Pressure (Compressed Air)>≥0.6MPa
Compressed Air ConsumptionApprox. 80L/min
Nitrogen Supply Pressure>≥0.4MPa
Nitrogen ConsumptionApprox. 50L/min
Residual Oxygen Content≤3%
