Keypack Intelligent Powder Flip Blowing Machine is a container surface cleaning machine designed for complete de-dusting and electrostatic elimination on finished cans. It delivers 30-80 cans/min cleaning capacity with 304 stainless steel construction and ionizing air knife technology. Ideal for food can cleaning, pharmaceutical packaging lines, chemical containers, and powder packaging applications where residue prevention is critical.
Product Overview

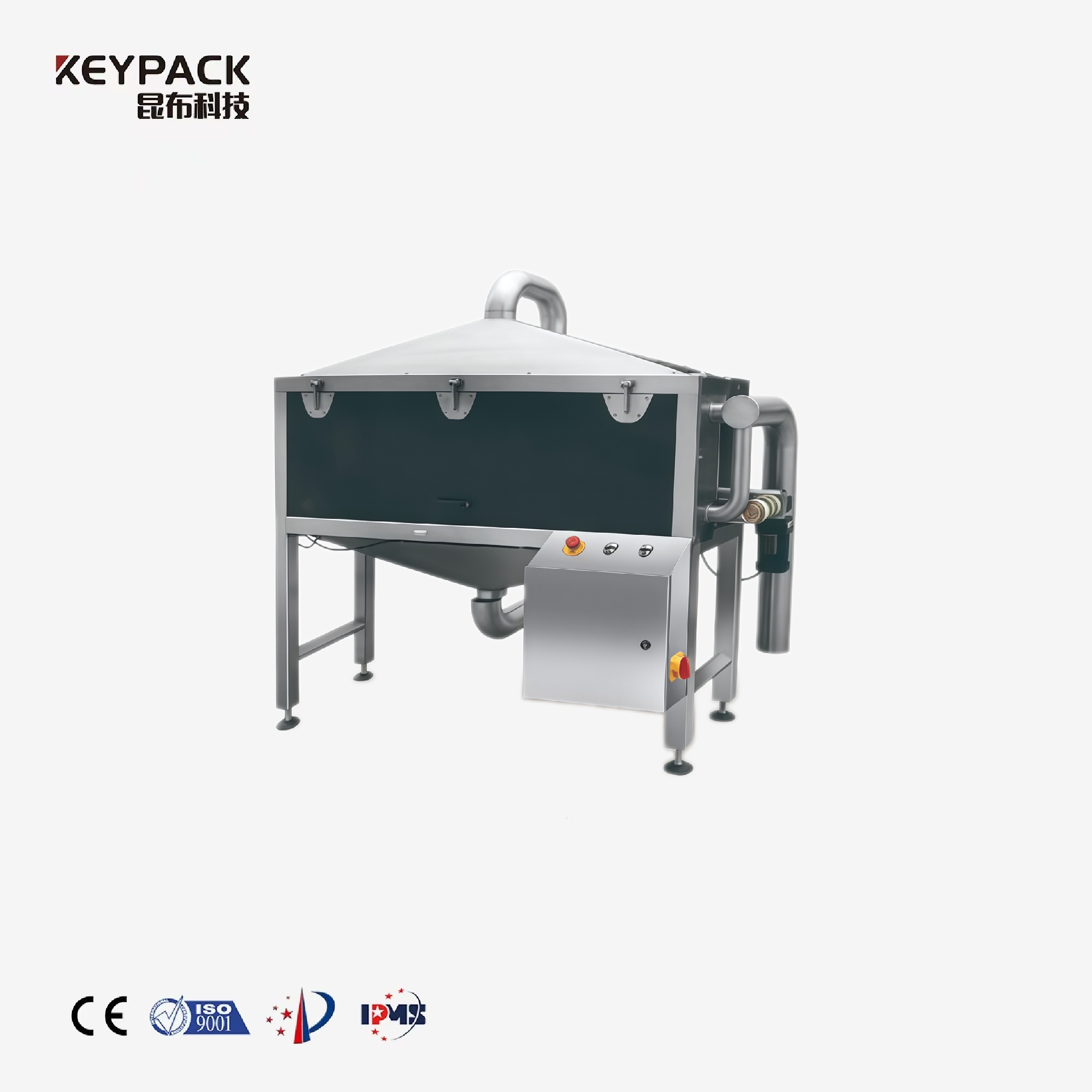

The Keypack Intelligent (Kunbupack) Powder Flip Blowing Machine is an advanced can dust cleaning system engineered specifically for surface cleaning of finished containers. This equipment provides comprehensive cleaning coverage for can circumference, top, and bottom surfaces through pulse air blowing and rotational conveying mechanisms. Equipped with a plasma fan for electrostatic elimination, the machine effectively removes material dust adhered to can bodies due to static electricity, ensuring thorough cleaning and dust collection for high-quality packaging standards.
Built with environmental protection in mind, this powder residue removal machine features an all-stainless steel structure with a tawny organic glass cover that prevents dust leakage and maintains a clean production environment. The turntable conveying system uses two circular belts operating at different speeds, allowing cans to rotate while moving through the cleaning zone, ensuring side-mounted brushes reach every surface area without missed spots.
Product Specifications
| Model |
Ion Wind Can Cleaning Machine |
| Cleaning Capacity |
30-80 cans/min |
| Applicable Can Specifications |
Diameter: Φ60-Φ150mm (requires replacement of can feeding screw), Height: 80-200mm |
| Total Power |
2KW |
| Overall Dimensions |
2600mm (L) × 600mm (W) × 1600mm (H) |
| Main Material |
304 Stainless Steel |
| Power Supply |
Three-phase 380V 50-60HZ |
| Machine Weight |
400KG |
| Special Features |
Plasma fan for static elimination, Rotational cleaning with dual-speed circular belts, Pulse air knife cleaning, Built-in snail booster blower, Dust collection port |
Key Features and Machine Characteristics
1. Comprehensive Surface Cleaning with Ionizing Air Knife
The machine provides all-round cleaning for finished cans, covering circumference, top, and bottom surfaces. Upper and lower pulse air knives deliver high-pressure air blowing supported by a built-in snail booster blower, ensuring effective dust removal and complete de-dusting of each container surface.
2. Electrostatic Elimination with Plasma Technology
Equipped with a plasma fan system, the equipment effectively removes static electricity that causes powder residue adhesion to can bodies. This ionizing air knife technology ensures thorough elimination of material dust and impurities, delivering superior cleaning results compared to conventional methods.
3. Rotational Cleaning for Full Coverage
The turntable conveying system uses two circular belts operating at different speeds to rotate cans while moving through the cleaning zone. This motion ensures side-mounted brushes contact every area of the can body, providing complete coverage without missed spots for consistent cleaning quality.
4. Adjustable Speed Control
The integrated speed governor allows flexible adjustment of circular belt speeds to accommodate different can specifications and production requirements. This adaptability makes the system suitable for diverse container sizes and cleaning needs across various production environments.
5. Dust-Proof Stainless Steel Construction
Built with 304 stainless steel construction for durability and corrosion resistance, the machine features a tawny organic glass cover that prevents dust leakage and protects the surrounding environment from pollution. This design maintains clean production areas and supports environmental protection standards.
6. Easy Operation with Dust Collection Compatibility
The machine is designed for easy operation with a simple control system. A bottom dust removal port allows connection to external dust collectors (sold separately or customer-supplied), further enhancing dust collection efficiency and environmental protection performance.
Application Areas
Food Industry Applications
-
Powder Food Packaging: Milk powder, protein powder, coffee powder, and seasoning powder can cleaning before filling and sealing
-
Dry Food Containers: Tea canisters, nut containers, and dried fruit packaging surface cleaning for food safety compliance
-
Beverage Cans: Metal can surface cleaning for beverage packaging lines requiring residue-free containers
Pharmaceutical Packaging Applications
-
Medicine Powder Containers: Pharmaceutical powder packaging can cleaning to maintain sterile and dust-free conditions
-
Nutraceutical Packaging: Vitamin powder, supplement powder, and health product container surface cleaning for GMP compliance
-
API Packaging: Active pharmaceutical ingredient container cleaning for contamination prevention
Chemical Industry Applications
-
Chemical Powder Containers: Industrial chemical powder packaging can cleaning to prevent cross-contamination
-
Pigment and Dye Packaging: Color powder container surface cleaning for quality assurance
-
Additive Packaging: Chemical additive and catalyst container cleaning for purity maintenance
General Powder Packaging Line Integration
-
Pre-filling Cleaning: Container surface preparation before powder filling operations to ensure product quality
-
Post-production Cleaning: Finished can exterior cleaning before labeling and packaging for presentation quality
-
Multi-product Lines: Flexible cleaning for production lines handling multiple powder products with different specifications
