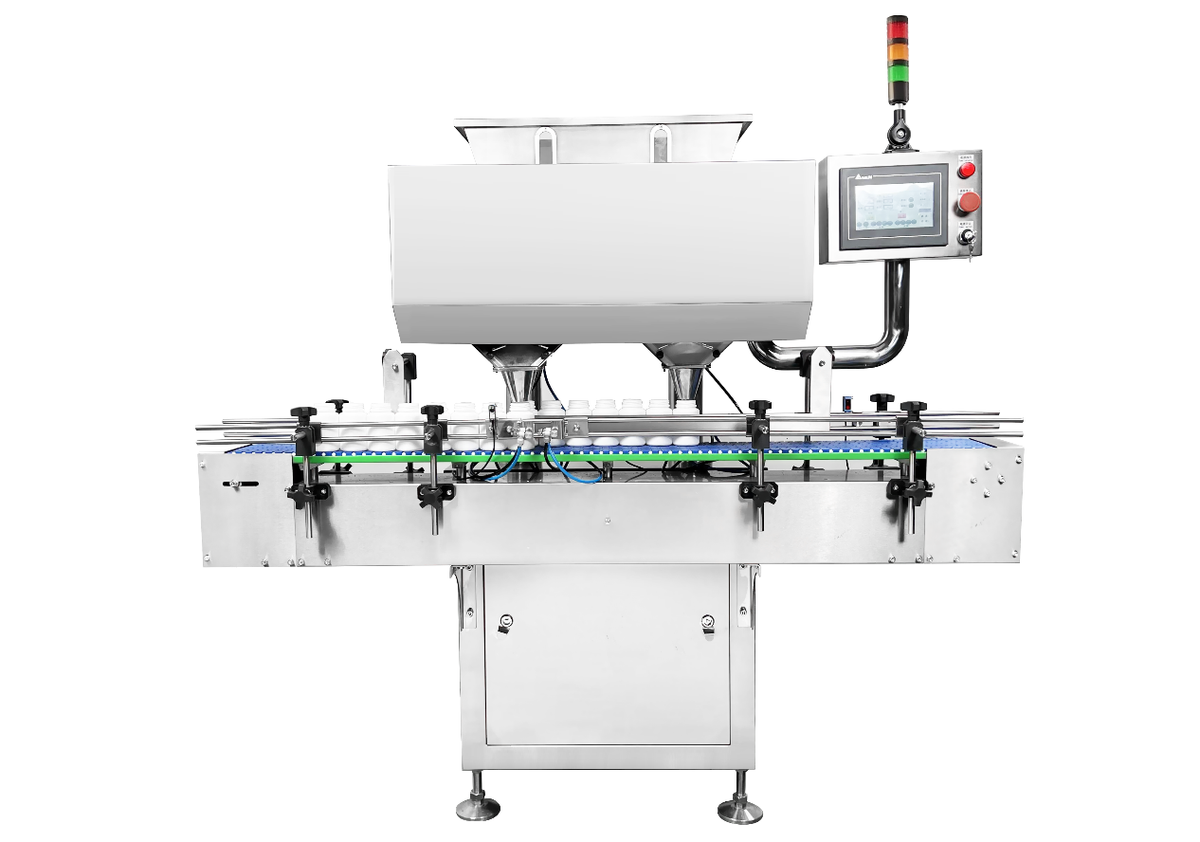

The Keypack Intelligent Fully Automatic 24-Channel Electronic Particle Counting Machine is a commercial-grade multi-channel counting and bottle filling system engineered for accurate high-speed packaging of solid pharmaceutical products and food supplements. This automatic tablet counting machine delivers precise photoelectric counting with 24 independent vibration feeding channels, achieving high-speed bottle filling accuracy compliant with pharmaceutical packaging standards while seamlessly integrating into automated production lines. Designed for pharmaceutical manufacturers, nutraceutical producers, and food supplement packagers requiring reliable automated counting solutions for tablets, capsules, soft capsules, pills, and granular products in high-volume bottle filling operations demanding consistent accuracy and minimal product damage.
Product Overview
The 24-Channel Electronic Particle Counting Machine operates through an advanced multi-channel vibration feeding system combined with photoelectric counting sensors, enabling simultaneous counting and filling of 24 bottles per cycle for maximum production throughput. The system integrates with upstream conveyor lines to precisely position bottles at the filling station, while vibrating corrugated feeding plates evenly distribute tablets, capsules, or granular products into 24 independent counting chambers equipped with high-precision photoelectric sensors. This multi-channel architecture significantly increases production capacity compared to single-channel or low-channel counting machines, making it ideal for high-volume pharmaceutical tablet packaging, nutraceutical capsule bottling, and food supplement filling operations.
The photoelectric counting technology utilizes Keypack anti-high-dust sensing technology specifically designed to maintain reliable counting accuracy in dusty pharmaceutical production environments where tablet dust, capsule powder, and product particles create challenging operating conditions. The sensors accurately detect and count individual tablets, capsules, soft capsules, pills, and granular products regardless of shape, size, color, or transparency, ensuring consistent filling accuracy across diverse product portfolios including shaped tablets, transparent soft capsules, opaque capsules, and various pill formulations.
The intelligent control system features multiple detection and alarm functions including no-bottle-no-count logic preventing product waste, missing bottle detection with automatic shutdown, and fault self-diagnosis capabilities improving operational safety and reducing downtime. The user-friendly interface allows operators to flexibly adjust counting parameters, bottle sizes, and production speeds according to specific requirements, while the simple mechanical structure enables quick operator training, tool-free disassembly for cleaning, and rapid part replacement minimizing maintenance downtime in demanding pharmaceutical and nutraceutical production environments.
Technical Specifications
-
Number of Channels: 24 independent counting and filling channels
-
Counting Technology: Photoelectric counting sensors with anti-high-dust technology
-
Feeding System: 24-channel vibration feeding with corrugated feeding plates
-
Product Compatibility: Tablets (including shaped tablets), capsules, soft capsules (transparent/opaque), pills, granular materials
-
Counting Accuracy: Compliant with national pharmaceutical packaging standards
-
Bottle Positioning: Automatic bottle positioning on conveyor line at filling station
-
Control System: Intelligent PLC control with parameter adjustment capability
-
Detection Functions: No-bottle-no-count, missing bottle detection, fault self-diagnosis
-
Alarm System: Automatic shutdown on missing bottle or fault conditions
-
Nozzle Design: Standard nozzles with optional anti-clogging special structured nozzles
-
Dust Control: Optional sealed dust-prevention design with dust collection box
-
Maintenance: Tool-free disassembly for cleaning and part replacement
-
Material Construction: Pharmaceutical-grade materials for product contact areas
-
Integration: Compatible with upstream bottle feeding and downstream capping/labeling equipment
Key Features and Machine Characteristics
24-Channel Vibration Feeding System for High-Speed Production
The multi-channel vibration feeding system with 24 independent channels enables simultaneous counting and filling of 24 bottles per cycle, dramatically increasing production throughput compared to single-channel or low-channel counting machines. The vibrating corrugated feeding plates ensure uniform product distribution across all 24 counting chambers while the unique flap dispensing mechanism delivers stable material flow without damaging fragile tablets, capsules, or soft capsules. This high-capacity multi-channel architecture is particularly valuable for large-scale pharmaceutical manufacturers producing high-volume tablet products, nutraceutical companies packaging popular supplement formulations, and contract packaging operations serving multiple clients requiring efficient bottle filling with minimal changeover time between different products.
Anti-High-Dust Photoelectric Sensing Technology
The Keypack anti-high-dust photoelectric sensing technology maintains reliable counting accuracy in challenging pharmaceutical production environments where tablet dust from compression operations, capsule powder from filling processes, and product particles create dusty conditions that compromise conventional photoelectric sensors. The specialized sensor design prevents dust accumulation on optical surfaces and compensates for dust interference in the counting chamber, ensuring consistent accuracy across extended production runs without frequent cleaning interruptions. This dust-resistant capability is particularly important for pharmaceutical tablet packaging where tablet dust is unavoidable, nutraceutical capsule bottling where powder leakage occurs, and food supplement filling operations handling dusty granular products.
Wide Application Range for Diverse Solid Products
The counting machine accommodates diverse solid pharmaceutical products and food supplements including round tablets, shaped tablets with logos or break lines, standard gelatin capsules, vegetarian capsules, transparent soft capsules, opaque soft capsules, traditional pills, and various granular materials with consistent counting accuracy regardless of product shape, size, color, or transparency. This versatility enables pharmaceutical manufacturers to use a single counting machine for multiple product lines including pain relievers, vitamins, antibiotics, and specialty medications, while nutraceutical producers can package fish oil soft capsules, vitamin capsules, herbal supplements, and mineral tablets on the same equipment with simple parameter adjustments, maximizing equipment utilization and reducing capital investment in specialized counting equipment.
High Counting Accuracy Compliant with Pharmaceutical Standards
The automatic photoelectric counting system delivers filling accuracy compliant with national pharmaceutical packaging standards and GMP requirements, ensuring consistent bottle fill counts meeting regulatory specifications for pharmaceutical tablet packaging, nutraceutical capsule bottling, and food supplement filling operations. The precision counting prevents underfilling that causes regulatory compliance issues and customer complaints, while minimizing overfilling that increases product giveaway costs and reduces profitability in high-volume production. The counting accuracy is particularly critical for pharmaceutical products where precise dosing is essential for patient safety, expensive nutraceutical ingredients where overfilling directly impacts costs, and regulated food supplements requiring accurate label claims.
Intelligent Control System with Multiple Detection and Alarm Functions
The intelligent PLC control system features no-bottle-no-count logic preventing product waste by stopping counting operations when bottles are absent from filling positions, missing bottle detection with photoelectric sensors triggering automatic machine shutdown, and fault self-diagnosis capabilities identifying mechanical issues, sensor malfunctions, and operational problems with clear alarm messages. These intelligent safety features improve operational efficiency by preventing product spillage, reduce material waste in pharmaceutical production where active ingredients are expensive, and enhance operator safety by automatically stopping the machine when unsafe conditions are detected. The alarm system is particularly valuable in pharmaceutical manufacturing requiring strict quality control, nutraceutical production demanding consistent output, and food supplement packaging operations with minimal supervision.
Optional Anti-Clogging Nozzle for Small-Opening Bottles
The optional special structured nozzle with anti-clogging design enables smooth and fast bottling into containers with small openings including pharmaceutical bottles with narrow necks, supplement bottles with restricted openings for child-resistant caps, and specialty containers with limited access. The anti-clogging nozzle design prevents product jamming during discharge, maintains consistent filling speed, and reduces bottle changeover time when switching between different container sizes. This optional feature is particularly beneficial for pharmaceutical manufacturers packaging tablets in bottles with tamper-evident seals requiring narrow openings, nutraceutical producers using child-resistant packaging with restricted access, and supplement packagers filling bottles with small necks for portion control.
Easy Maintenance with Tool-Free Disassembly
The simple mechanical structure with tool-free disassembly enables operators to quickly remove counting chambers, feeding plates, and nozzles for cleaning between product changeovers, supporting allergen control protocols in facilities packaging multiple supplement formulations and contamination prevention in pharmaceutical production. The quick-clean design reduces changeover time from hours to minutes when switching between different tablet products, capsule formulations, or supplement varieties, while the straightforward part replacement process minimizes maintenance downtime and reduces the need for specialized technical expertise. This maintenance-friendly design is particularly valuable for contract packaging operations with frequent product changes, pharmaceutical manufacturers producing multiple tablet strengths, and nutraceutical companies with seasonal product variations.
Optional Sealed Dust-Prevention Design
The optional sealed dust-prevention design with integrated dust collection box reduces airborne dust pollution in the production environment, improving working conditions for operators and maintaining cleaner pharmaceutical manufacturing facilities. The dust collection system captures tablet dust, capsule powder, and product particles generated during the counting and filling process, preventing dust accumulation on equipment surfaces and reducing cleaning frequency. This dust control option is particularly important for pharmaceutical tablet packaging where tablet dust creates health concerns, nutraceutical capsule bottling where powder leakage affects air quality, and food supplement filling operations requiring hygienic production environments for regulatory compliance.
Application Areas
Pharmaceutical Industry: Tablet and Capsule Bottle Filling
Pharmaceutical manufacturers utilize this automatic counting machine for high-speed tablet bottle filling including pain relievers, antibiotics, cardiovascular medications, and specialty pharmaceuticals in prescription bottles from 30-count to 1000-count sizes, capsule bottling for antibiotic capsules, probiotic supplements, and pharmaceutical formulations, soft capsule packaging for fish oil medications and vitamin E supplements, and pill counting for traditional medicine formulations. The 24-channel system processes pharmaceutical products at high speeds matching downstream capping and labeling equipment, while the counting accuracy ensures regulatory compliance with FDA, EU, and national pharmaceutical packaging standards. The anti-dust sensing technology maintains reliable operation in tablet compression areas where dust is prevalent, supporting pharmaceutical production facilities serving retail pharmacy, hospital supply, and international export markets.
Nutraceutical and Dietary Supplement Industry
Nutraceutical manufacturers deploy this counting equipment for dietary supplement bottle filling including multivitamin tablets, mineral supplements, and herbal formulations in retail bottles from 30-count to 365-count sizes, soft capsule bottling for fish oil supplements, CoQ10 capsules, and omega-3 products, capsule counting for probiotic supplements, enzyme formulations, and specialty nutraceuticals, and granular supplement packaging for powdered supplement tablets and effervescent tablets. The multi-channel architecture enables high-volume production of popular supplement formulations while the versatile product compatibility accommodates diverse supplement portfolios including tablets, capsules, soft capsules, and specialty formats. The counting accuracy ensures label claim compliance for supplement facts panels, supporting nutraceutical producers serving retail health food stores, online supplement retailers, and direct-to-consumer subscription services.
Food Supplement and Functional Food Packaging
Food supplement manufacturers employ this bottle filling machine for functional food tablet packaging including vitamin-fortified tablets, mineral supplements, and nutritional tablets in consumer bottles, candy tablet counting for vitamin gummies and chewable supplements, and granular product filling for effervescent tablets and dissolvable supplement tablets. The food-grade construction and hygienic design support food safety requirements while the high-speed multi-channel operation enables efficient production of popular supplement products. The optional dust collection system maintains clean production environments meeting food manufacturing standards, supporting food supplement producers serving retail grocery, health food distribution, and e-commerce channels.
Contract Packaging Operations for Multiple Clients
Contract packaging facilities utilize this versatile counting machine for multi-client pharmaceutical tablet packaging serving various pharmaceutical companies, nutraceutical supplement bottling for multiple supplement brands, and private-label product filling for retail store brands and online sellers. The quick-changeover capability with tool-free disassembly enables efficient switching between different client products, while the wide product compatibility accommodates diverse tablet sizes, capsule types, and supplement formulations. The intelligent control system with parameter storage allows rapid recipe recall for repeat orders, supporting contract packagers serving pharmaceutical manufacturers, supplement brands, and private-label clients requiring flexible production scheduling and consistent quality.
Production Line Integration with Upstream and Downstream Equipment
The counting machine integrates seamlessly into complete pharmaceutical packaging lines with upstream bottle unscrambling and feeding systems delivering empty bottles to the counting station, bottle cleaning equipment preparing containers for filling, and downstream automatic capping machines applying child-resistant caps or tamper-evident seals, induction sealing systems for product protection, labeling equipment applying product labels and regulatory information, coding systems printing batch numbers and expiration dates, and case packing machines for retail-ready shipper cartons. This complete line integration creates fully automated pharmaceutical packaging operations, nutraceutical production facilities, and supplement bottling lines with minimal manual intervention from bulk product to palletized finished goods.
