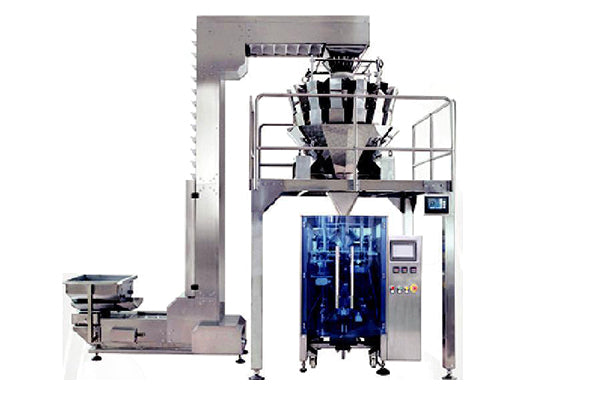

Multihead Weigeher Packing Machine Technical Specifications

Professional multihead weigeher packing machine with production speed up to 120 packages/min, machine dimensions: 2160×1530×1700mm, weight: 500kg / 700kg.Ideal for Food packaging, Agricultural product packaging, Industrial granular product packaging packaging applications.Supports Stand-up pouch, Pillow bag, Flat pouch, Gusseted bag bag types.

Core Technical Specifications

  • Production Speed: 120 packages/min
  • Applicable Products: Large granular products; Nuts; Seeds; Dried fruits; Snacks; Pet food; Hardware parts; Plastic pellets
  • Machine Dimensions: 2160×1530×1700mm
  • Machine Weight: 500kg / 700kg
  • Power Supply & Power: 220V, 50-60Hz, 3.0Kw / 220V, 50-60Hz, 3.6Kw

Packaging Types & Formats

  • Bag Type: Stand-up pouch, Pillow bag, Flat pouch, Gusseted bag

B2B Terms & Conditions

  • Customizable Modules: Bag making system, Multihead weigher, Filling mechanism, Sealing system, Date printer, Conveyor belt
  • Lead Time:15-30 days (typical)
  • Samples: Available upon request
  • OEM/ODM: Custom development available

Applications

  • Food packaging
  • Agricultural product packaging
  • Industrial granular product packaging
Model KL-C420 KL-C520
Making bag size (L)60-300mm, (W)60-200mm,(L)80-350mm, (W)80-250mm
Packing Speed 25-75 Bags/Min,25-65 Bags/Min
Power Supply 220V, 50-60Hz, 3.0Kw,220V, 50-60Hz, 3.6Kw
Compressed air consumption 6-8 kg/m² ~0.3 m³/min,6-8 kg/m² ~0.3 m³/min
Weight 500 kg,700 kg
Dimension 1450×1000×1400 mm,1450×1100×1500 mm
