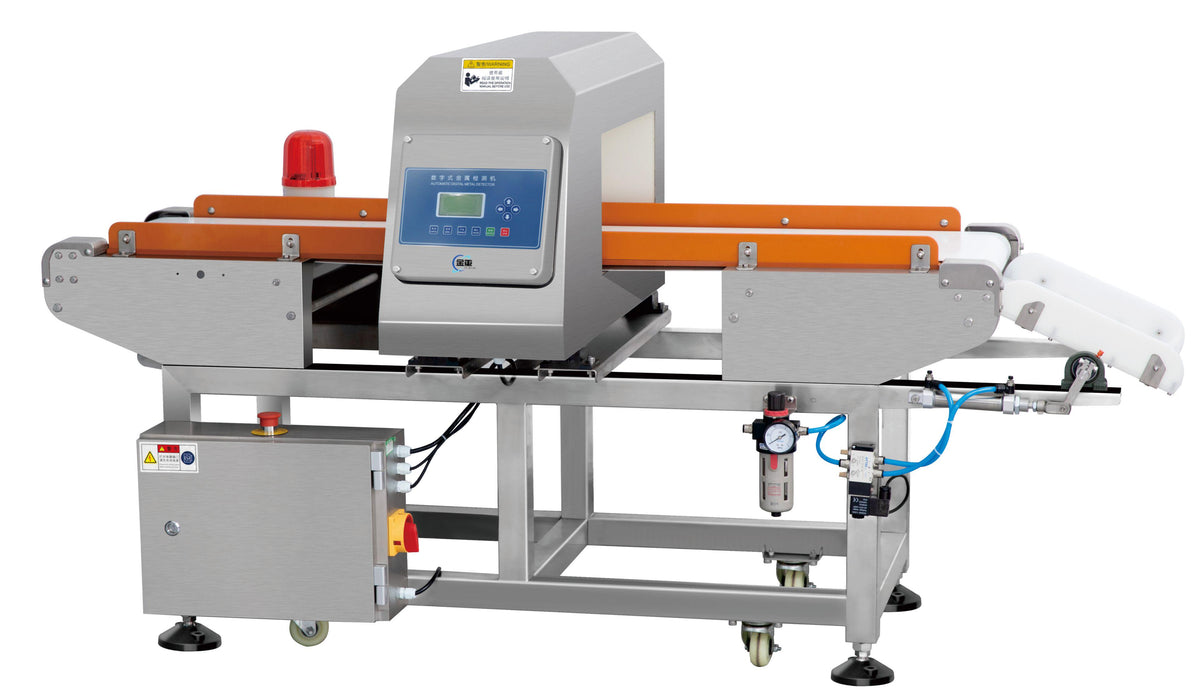

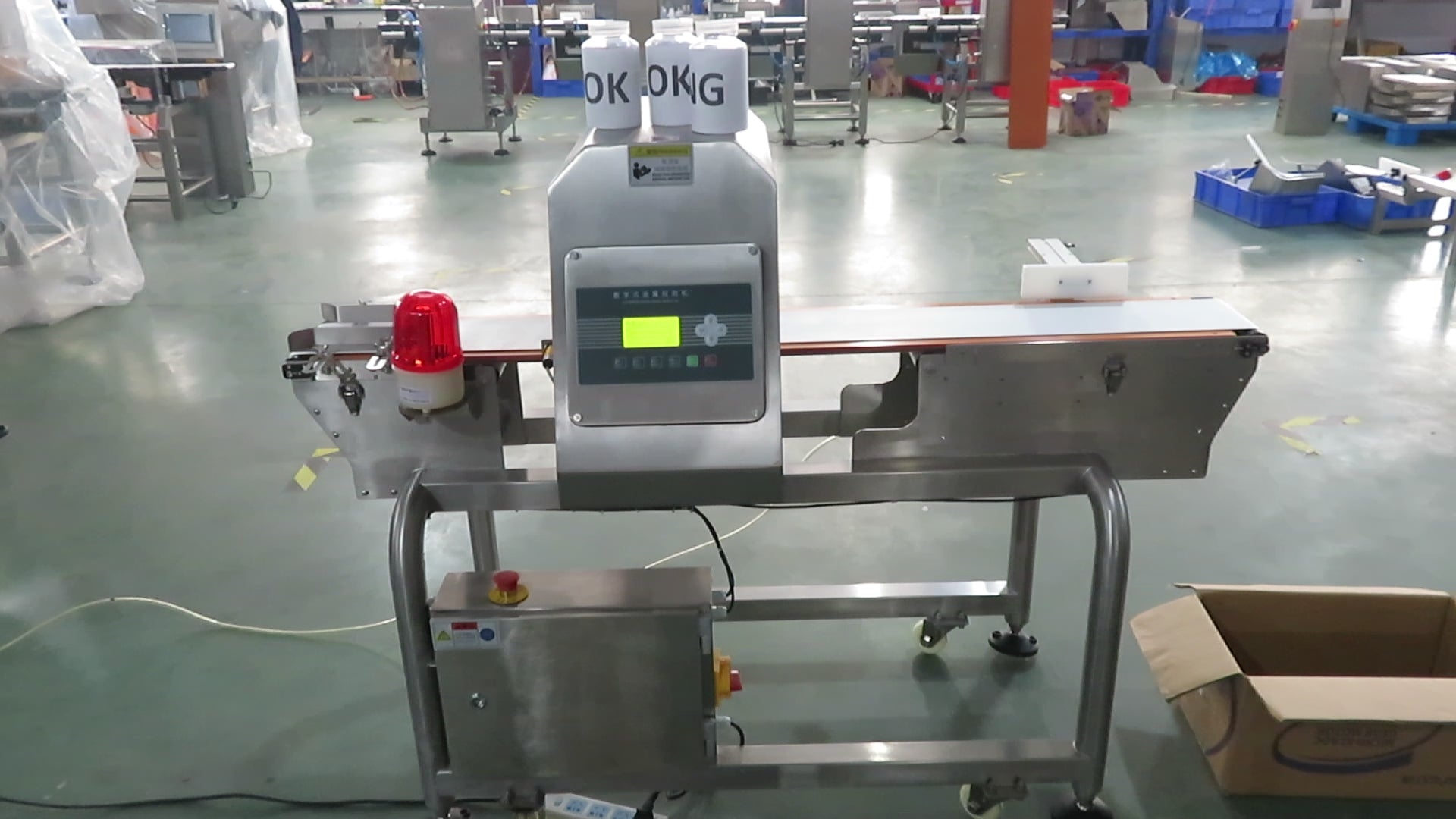

Keypack Intelligent Metal Detector

Collections:
Bottle Packaging Machine, Corollary Equipment, Post-Process Intelligence, Weighing Inspection & Metal-Detection Machine
Usage:
N/A

Ask a question

Specifications
Description

Keypack Intelligent Technology Co., Ltd. Technical Specifications

Professional keypack intelligent technology co., ltd. with production speed up to Maximum belt speed: 25m/min, machine dimensions: Detection aperture: 600×300mm; Conveyor belt height: 750±50mm, weight: N/A.Ideal for Food packaging, Pharmaceutical packaging, Daily chemical packaging, Product safety inspection packaging applications.Supports N/A - Metal detection equipment bag types.

Core Technical Specifications

Production Speed: Maximum belt speed: 25m/min
Applicable Products: Products passing through detection aperture: Width ≤600mm, Height ≤300mm; Maximum load: 30kg/time
Machine Dimensions: Detection aperture: 600×300mm; Conveyor belt height: 750±50mm
Machine Weight: N/A
Power Supply & Power: AC220V 50-60Hz

Packaging Types & Formats

Bag Type: N/A - Metal detection equipment

B2B Terms & Conditions

Customizable Modules: Detection system, Conveyor belt, LCD control panel, Alarm system, Rejection system
Lead Time:15-30 days (typical)
Samples: Available upon request
OEM/ODM: Custom development available

Applications

Food packaging
Pharmaceutical packaging
Daily chemical packaging
Product safety inspection

Technical Specifications	Details
Detection Sensitivity (No-Load Condition)	Fe≥φ2.0mm, Non-Fe≥φ3.0mm, Sus304≥φ3.5mm
Effective Detection Aperture Width	600mm
Effective Detection Aperture Height	300mm
Conveying Capacity	30kg/time
Maximum Conveyor Belt Speed	25m/min
Conveying Direction	Left to Right (facing the screen)
Conveyor Belt Height	750±50mm (customizable per customer requirements)
Alarm Mode	Alarm and Machine Stop
Conveyor Belt Material	PVC Belt
Protection Level	IP65
Display & Operation Method	LCD Panel with Key Input
Power Supply Requirement	AC220V 50-60Hz
Main Body Material	Full Stainless Steel (SUS304)
