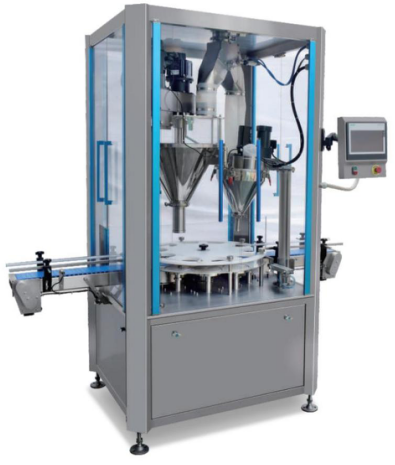

Non-Defective Canned Filling Machine

Visa Mastercard American Express PayPal Diners Club Discover

This Non-Defective Canned Filling Machine eliminates traditional rotary table feeding design, featuring single-row dual-head filling system that ensures high precision while removing cleaning difficulties associated with rotary feeding systems.

Key Features

  • Dual-head filling system (main fill + supplementary fill) for high accuracy
  • Servo and pneumatic system control for precise can handling and positioning
  • Servo motor and drive control for screw filling operation
  • PLC control with touchscreen HMI for easy operation
  • High-response weighing system ensures speed and precision
  • Hand wheel adjustment for different can heights
ParameterEquipment Specifications
Weighing MethodPost-Weighing Secondary Supplement Screw Rotor Filling Type
Container SizeCylindrical Container: φ50-180mm, Height 50-350mm
Packaging Weight10-5000g (Accessories Purchased Separately)
Packaging Accuracy≤±1.5g
Packaging Speed25-55 cans/min
Power Supply220V 50Hz
Total Power3.5kW
Air Pressure0.6-0.8MPa
Air Consumption0.2m³/min
