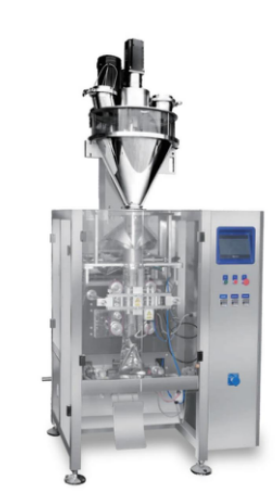

Kunbupack Vertical Powder Packer for Medium Bags

Visa Mastercard American Express PayPal Diners Club Discover

This Kunbupack Vertical Powder Packer for Medium Bags is Suitable for packaging powdery and granular materials, such as milk powder, solid beverages, white sugar, glucose, coffee, feed, solid pharmaceuticals, powdery and granular additives, dyes, etc.

Main Performance and Structural Features

  • Equipped with safety protection devices, complying with enterprise safety management requirements.
  • Adopts an intelligent temperature controller for accurate temperature control, ensuring neat and smooth seals.
  • Utilizes a PLC servo system, a pneumatic control system, and an extra-large display touchscreen to form the core of drive control, which maximizes the control precision, reliability, and intelligence level of the entire machine.
  • The touchscreen can store packaging process parameters for a variety of different products. When switching between products, the stored parameters can be used immediately without reconfiguration.
  • Equipped with a fault display system that helps identify and troubleshoot faults in a timely manner when faults occur.
  •  Can be configured to produce pillow bags, hanging-hole bags, etc., according to customer needs.
ModelKL-320KL-420KL-520KL-620KL-820KL-1250
Bag-making Size(L)60-250mm(W)50-150mm(L)60-300mm(W)60-200mm(L)80-350mm(W)80-250mm(L)100-400mm(W)100-300mm(L)120-500mm(W)120-400mm(L)150-800mm(W)150-600mm
Packing Speed40-100bags/min35-80bags/min30-80bags/min30-70bags/min20-60bags/min5-30bags/min
Power Supply220V,50/60HZ,3.0KW220V,50/60HZ,3.0KW220V,50/60HZ,4.0KW220V,50/60HZ,4.0KW220V,50/60HZ,4.0KW220V,50/60HZ,5.0KW
Compressed Air6-8kg/m²6-8kg/m²6-8kg/m²6-8kg/m²6-8kg/m²6-8kg/m²
Air Consumption0.3 m³/min0.3 m³/min0.3 m³/min0.3 m³/min0.3 m³/min0.3 m³/min
Machine Weight300kg350kg350kg400kg450kg500kg
DimensionL1400*W1000*H1200mmL1650*W1100*H1500mmL1650*W1200*H1600mmL1800*W1300*H1750mmL2050*W1600*H2050mmL2128*W2057*H2385mm
