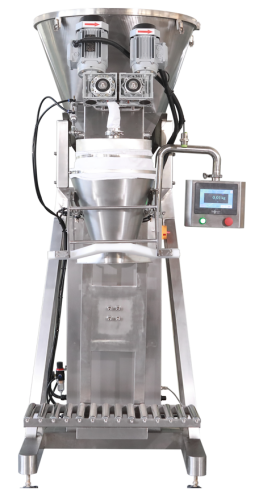

Kunbupack Semi-Automatic Vertical Powder Packaging Machine

Visa Mastercard American Express PayPal Diners Club Discover

This Kunbupack Semi-Automatic Vertical Powder Packaging Machine can complete metering, filling and other operations. With its unique design, it is more suitable for packaging free-flowing or poor-flowing powder and granular materials, such as flour, cocoa powder, solid beverages, veterinary drugs, glucose, solid medicines, powder additives, toner, pesticides, flavors and fragrances, etc.

Main Features

  • Full stainless steel structure; combined or open-type transparent hopper, which can be easily disassembled and cleaned without tools.
  • Servo motor and servo drive control the screw.
  • PLC control and touch screen HMI display for easy operation.
  • Designed as weighing feedback specific gravity tracking type, which overcomes the disadvantage of packaging weight change caused by material specific gravity variation.
  • Adjustment parameters and formulas for various products can be stored for later use, with a maximum storage capacity of 10 formulas.
  • Replacing screw accessories can adapt to various materials from ultra-fine powder to small granules.

Keywords:

vacuum packing machine,VFFS Machine,Vertical Form-Fill-Seal Machine,Vertical Packaging Machine, Automatic Weighing,Multi-head Weighing Scale,GMP Standard Weighing Machine,Dust Free Powder ,Automatic Weighing Line,premade bag filling and sealing machine,premade pouch fill and seal machine, Pre-made Bag Packaging Machine,Bag Feeding Machine, Automatic Bag Packaging Machine, High Speed Packaging, PLC Touch Screen Control

Technical SpecificationsDetails
ModelKC-25 Powder Large Bag Automatic Weighing Equipment
Measurement MethodDirect Weighing Type
Feeding MethodDouble Screw
Filling Weight10~50Kg
Packaging Accuracy±0.1%g
Packaging Speed1~2 bags/min
Compressed Air Consumption0.2m³/min
Power SupplyThree-Phase 380V/50Hz
Total Machine Power3.5KW
