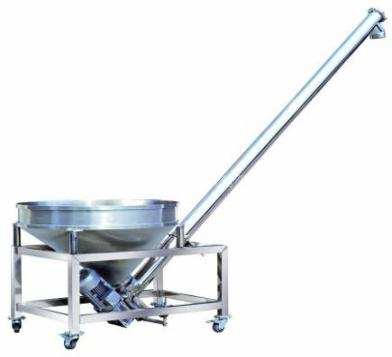

Kunbupack Spiral Vibrating Conveyer - Auxiliary Conveyor for Precise Powder Dosing & Transport
Couldn't load pickup availability
KEYPACK INTELLIGENT TECHNOLOGY CO.,LTD Technical Specifications
Professional keypack intelligent technology co.,ltd with production speed up to 400L/h / 600L/h / 1000L/h / 1500L/h / 2000L/h / 2500L/h / 3000L/h / 6000L/h / 6000L/h (ZKS-1/2/3/4/5/6/7/10-6/20-5 conveying rate), machine dimensions: Φ290×802mm to Φ800×2070mm (varies by model ZKS-1 to ZKS-20-5); Lifting height: 1-5m (customizable), weight: Φ290×802mm / Φ320×802mm / Φ400×1002mm / Φ500×1202mm / Φ600×1402mm / Φ700×1602mm / Φ800×1802mm / Φ800×1870mm / Φ800×2070mm (ZKS-1/2/3/4/5/6/7/10-6/20-5).Ideal for Anti-clog design, Auxiliary equipment, Closed transport, Food-grade material, Industrial feeding, Powder conveying, Precise dosing, Screw feeder packaging applications.Supports Spiral vibrating conveying, Powder material dosing and transport system bag types.
Core Technical Specifications
- Production Speed: 400L/h / 600L/h / 1000L/h / 1500L/h / 2000L/h / 2500L/h / 3000L/h / 6000L/h / 6000L/h (ZKS-1/2/3/4/5/6/7/10-6/20-5 conveying rate)
- Applicable Products: Infant formula powder, Pharmaceutical powders, Seasoning powders, All-purpose flour, Wheat flour, Fine powder materials
- Machine Dimensions: Φ290×802mm to Φ800×2070mm (varies by model ZKS-1 to ZKS-20-5); Lifting height: 1-5m (customizable)
- Machine Weight: Φ290×802mm / Φ320×802mm / Φ400×1002mm / Φ500×1202mm / Φ600×1402mm / Φ700×1602mm / Φ800×1802mm / Φ800×1870mm / Φ800×2070mm (ZKS-1/2/3/4/5/6/7/10-6/20-5)
- Power Supply & Power: 1.5kw / 2.2kw / 3kw / 4kw / 5.5kw / 7.5kw / 11kw (ZKS-1/2/3/4/5/6/7/10-6/20-5); Air supply pressure: 0.5-0.6Mpa
Packaging Types & Formats
- Bag Type: Spiral vibrating conveying, Powder material dosing and transport system
B2B Terms & Conditions
- Customizable Modules: Lifting angle adjustment (30-60°), Lifting height customization (1-5m), Spiral diameter options (Φ290-Φ800mm), Vibration frequency control, Stainless steel 304 construction
- Lead Time:15-30 days (typical)
- Samples: Available upon request
- OEM/ODM: Custom development available
Applications
- Anti-clog design
- Auxiliary equipment
- Closed transport
- Food-grade material
- Industrial feeding
- Powder conveying
- Precise dosing
- Screw feeder
| MODEL | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-5 | ZKS-6 | ZKS-7 | ZKS-10-6 | ZKS-20-5 |
|---|---|---|---|---|---|---|---|---|---|
| Conveying rate | 400L/h,600L/h,1200L/h,2000L/h,3000L/h,4000L/h,6000L/h,6000L/h Conveying Distance: 10 meters,5000L/h Conveying Distance: 10 meters | ||||||||
| motor power | 1.5kw,2.2kw,3kw,5.5kw,4kw,5.5kw,7.5kw,7.5kw,11kw | ||||||||
| air consumption | 8L/min,8L/min,10L/min,12L/min,12L/min,12L/min,17L/min,34L/min,68L/min | ||||||||
| air supply pressure | 0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa,0.5-0.6Mpa | ||||||||
| dimension | Φ290*802,Φ290*802,Φ290*952,Φ420*1216,Φ420*1216,Φ420*1216,Φ420*1379,Φ600*1612,Φ800*2070 |
